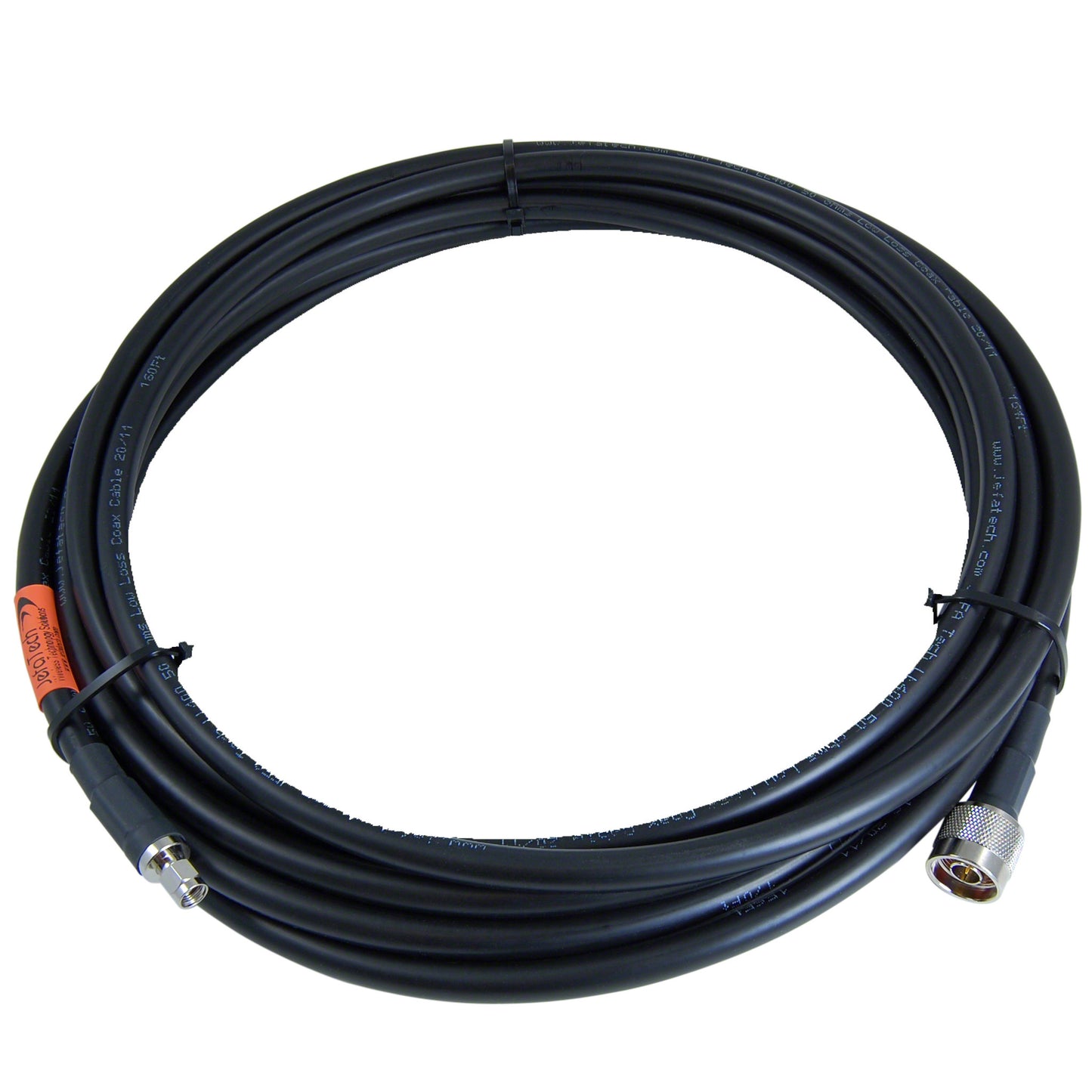

5G & 4G LTE External Antenna Cable - SMA Male to N Male - For Cradlepoint, Pepwave, Peplink, Inseego, MoFi, Netgear, Sierra Wireless and external antennas with N Female Connectors

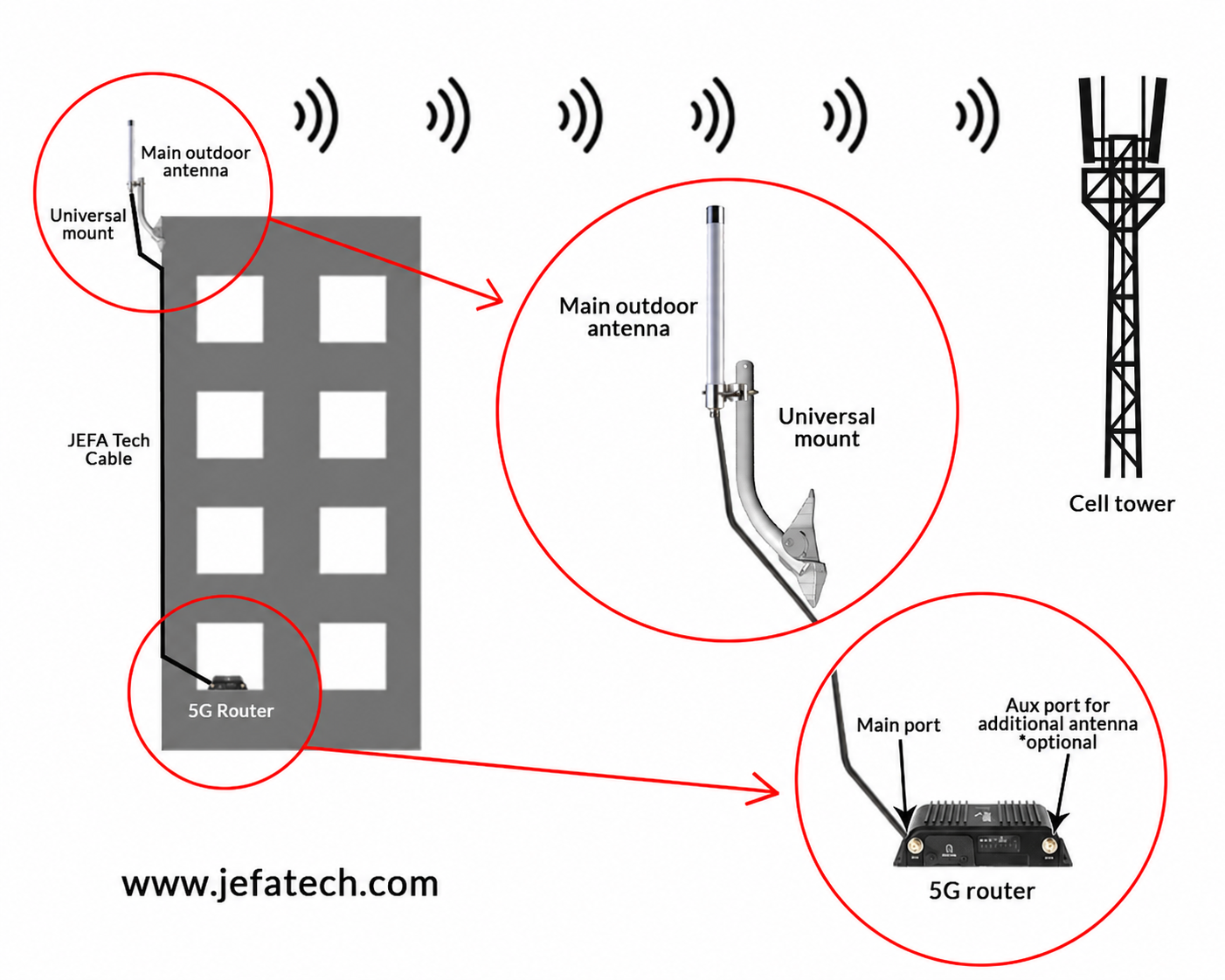

This cable directly connects any brand 5G / 4G LTE router such as Cradlepoint, Pepwave, Peplink, Inseego, MoFi, Netgear, Sierra Wireless to external antennas such as:

Omnidirectional Antenna Part # 170668-000
Directional Yagi Part # 170588-000

The purpose of the cable and antenna is to get a better signal from the cell tower to the router in order to maximize speed and reliability.

Cable signal loss / attenuation
Our cable is industry leading with the lowest signal loss available. Signal loss is approximately 3.9dB per 100ft of cable.

TECHNICAL SUMMARY:

• 50 ohm impedance
• .405" outer diameter (same as RG-8, RG-213, LMR®-400)
• Lightweight and Flexible
• Polyethylene Jacket - provides full waterproofing and UV Protection
• Solid Copper Clad Aluminum Center Conductor
• Direct Burial Capable with no conduit needed
• Double Shielded for low loss and interference rejection
• First Shield: Bonded aluminum foil with 100% coverage
• Second Shield: Tinned copper braid with 98% coverage
• Foam Dielectric - adds to flexibility and performance
• 5 year warranty, 20+ year life expectancy

QUALITY AND PERFORMANCE: This cable is professionally assembled and tested in our manufacturing facility in Maryland, USA! We stand behind the quality and performance of our cables. Our cables are guaranteed to be of the highest quality and performance or your money back.

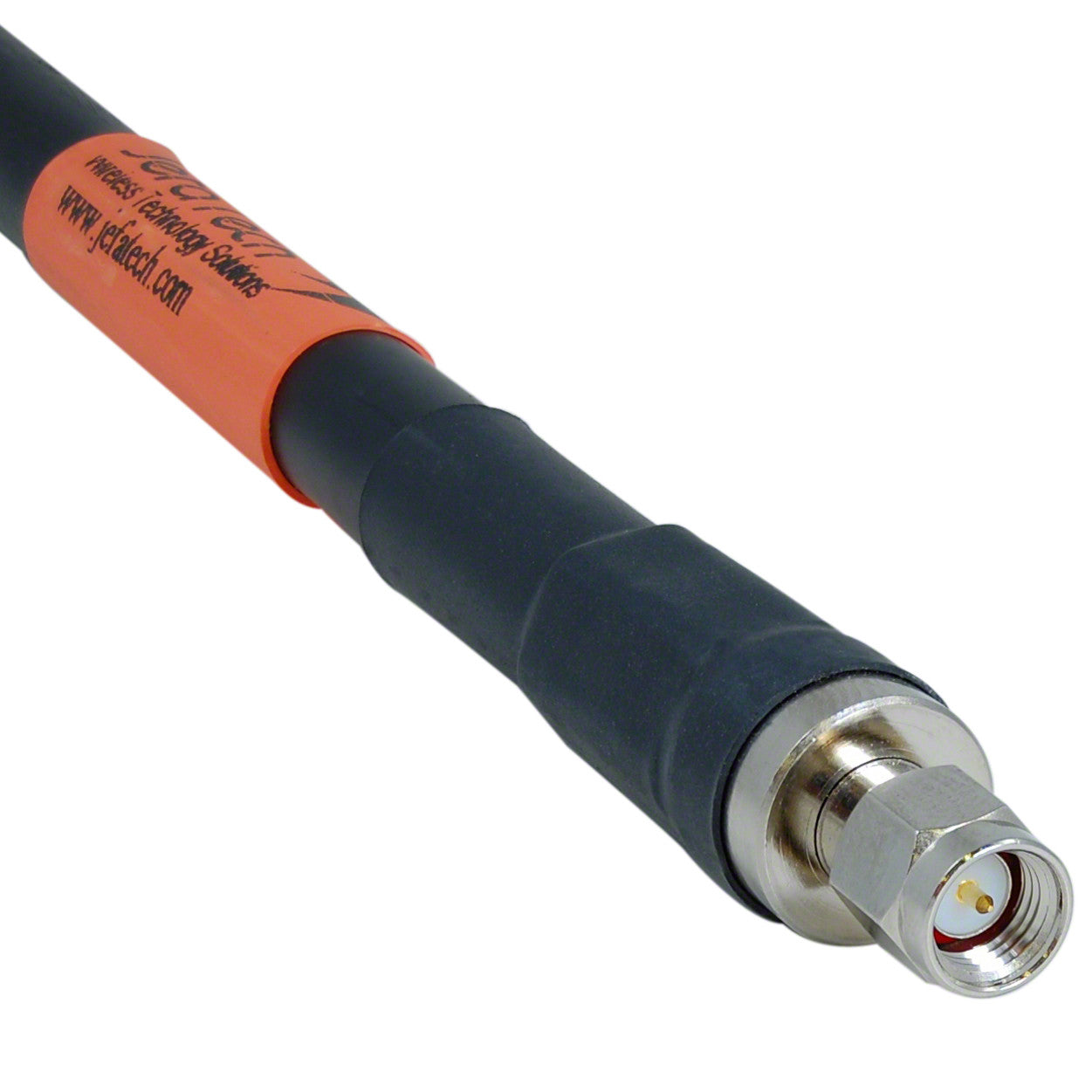

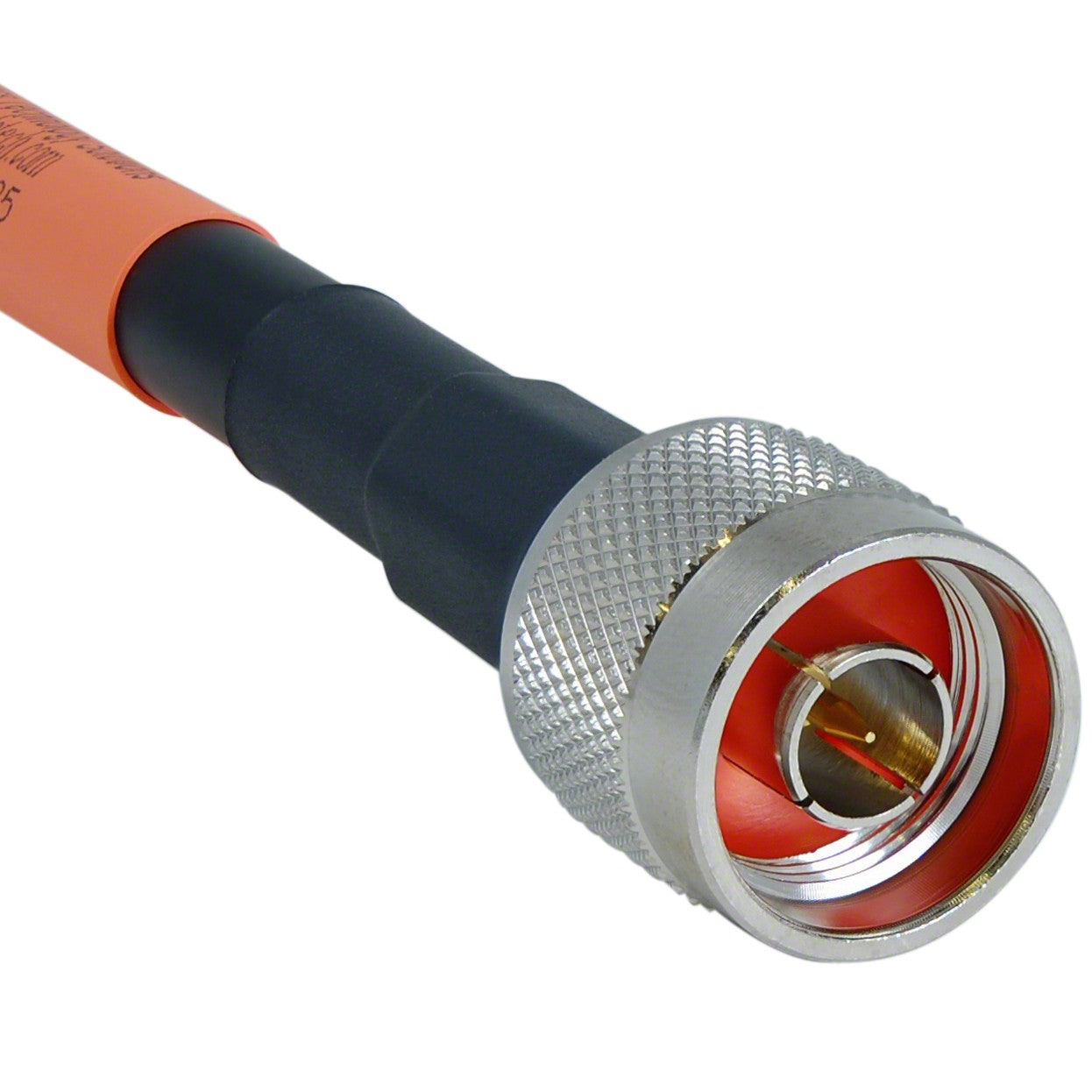

PRODUCTION DETAILS: You are purchasing a completed cable assembly with connectors professionally attached to the cable. The ends are soldered and crimped, heat shrink is applied to seal the cable to the connector and provide additional support and the cable is then tested to ensure proper assembly and performance.

SAME DAY SHIPPING: These cables are built-to-order. We have an optimized production line for these assemblies so most orders will ship the same day!
