4G LTE Outdoor Directional Yagi Antenna - CradlePoint 170588-000

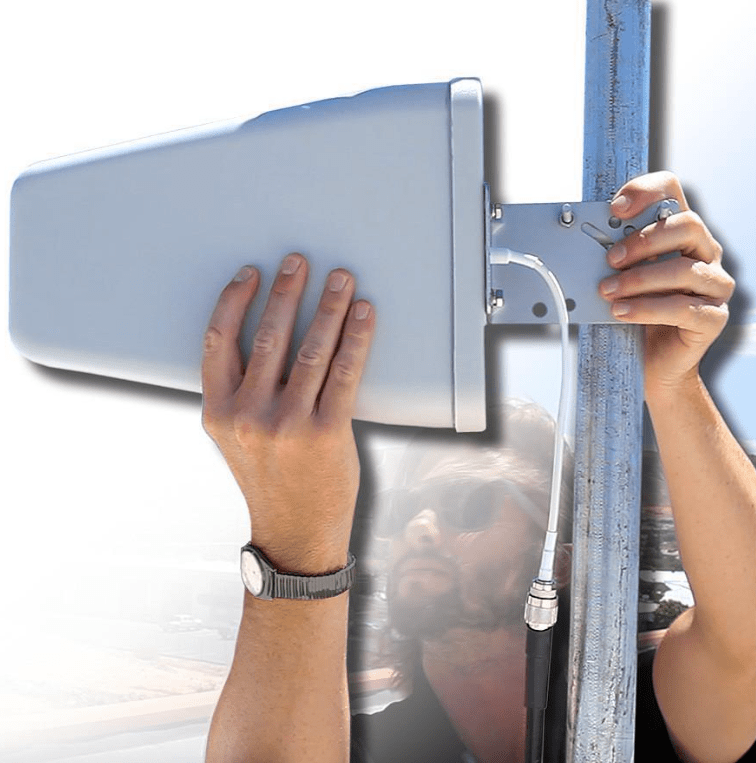

SKU: 314411CradlePoint’s Wide Band Directional Antenna (Log-Periodic) will collect the cell tower signal and send it through the cable to the integrated or embedded CradlePoint modem and router. When the modem transmits, the signal is transferred directly to the antenna and broadcast back to the cell tower.
Antenna Gain:
| BAND | Frequency (MHz) | GAIN (dBi) |
| LTE | 698 - 803 | 7.3 |
| GSM 850 | 824 - 894 | 8.1 |
| GSM 900 | 880 - 960 | 7.4 |
| DCS | 1710 - 1880 | 9.2 |
| PCS | 1850 - 1990 | 10.6 |
| UMTS1 | 1920 - 2170 | 10.4 |
| LTE 2600 | 2490 - 2700 | not tested |
Package Contents

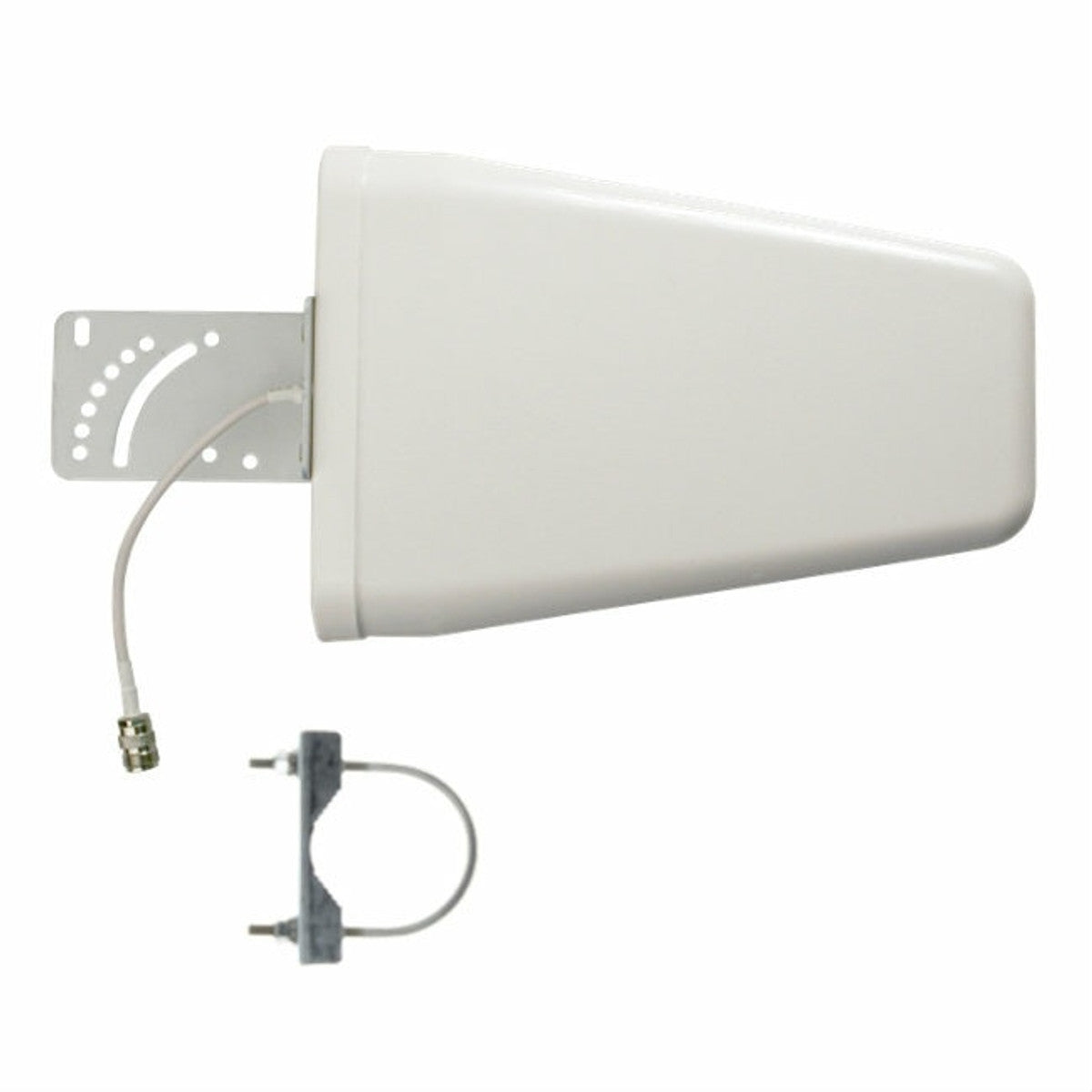

(A) Wide Band Log Periodic Directional Antenna & L Bracket
(B) 2 - U-Bolts
(C) 2 - Pipe Brackets
(D) 4 - 1/4” Washers
(E) 4 - 1/4” Split-Lock Washers
(F) 4 - 1/4”-20 nuts
50 ohm
N Female Connector
NOTE: An adapter or cable assembly is needed to connect to a CradlePoint modem. See the following link:
http://www.jefatech.com/collections/cradlepoint
