LMR®-240-UF Ultraflex Coaxial Cable with JEFA Tech Connectors and Assembly - Made in USA
LMR®-240-UF Ultraflex Coaxial Cable with JEFA Tech Connectors and Assembly - Made in USA
SKU:CA-LMR240UF-C1-C1-L

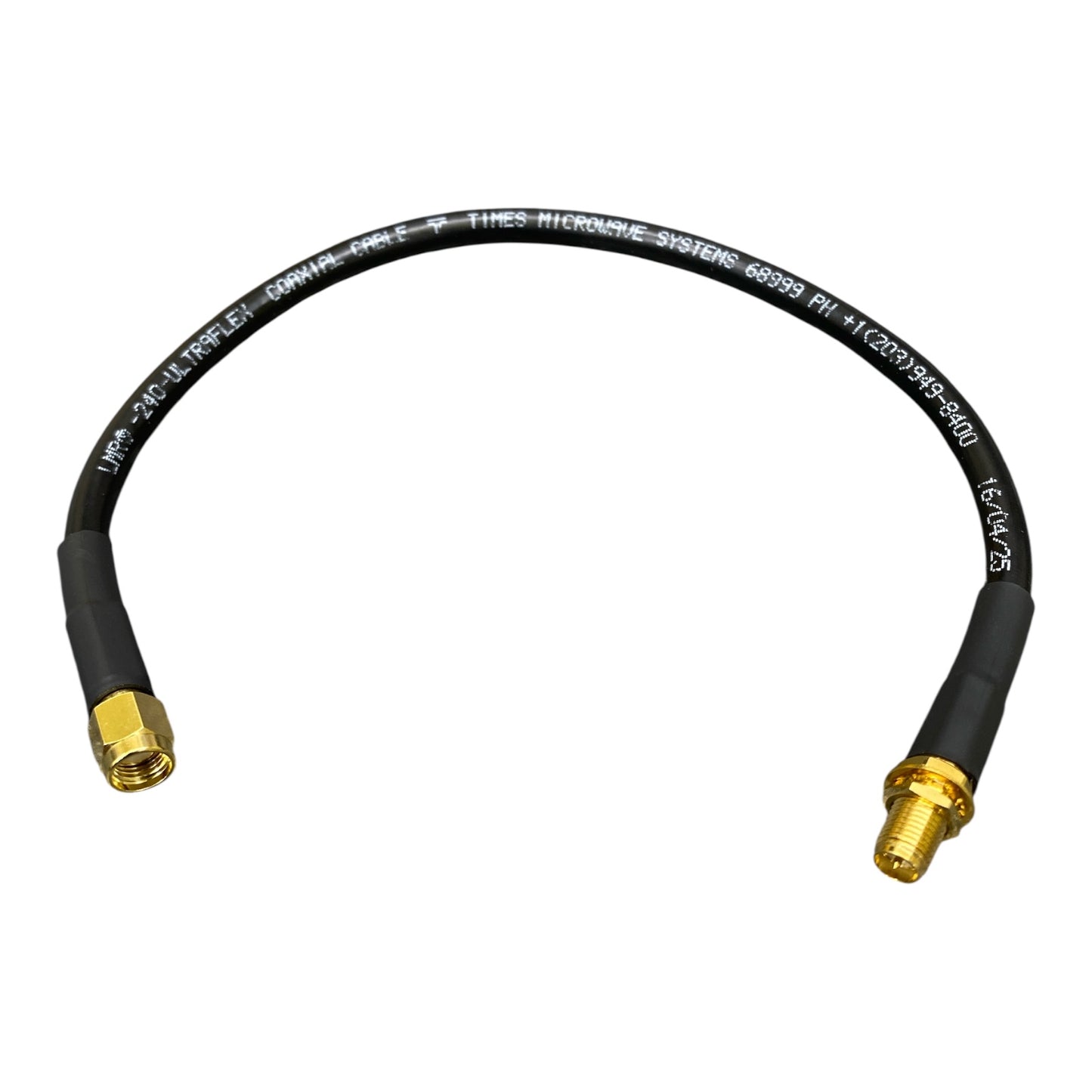

This Coaxial Cable Assembly uses LMR®-240-UF Ultraflex Cable and JEFA Tech Connectors

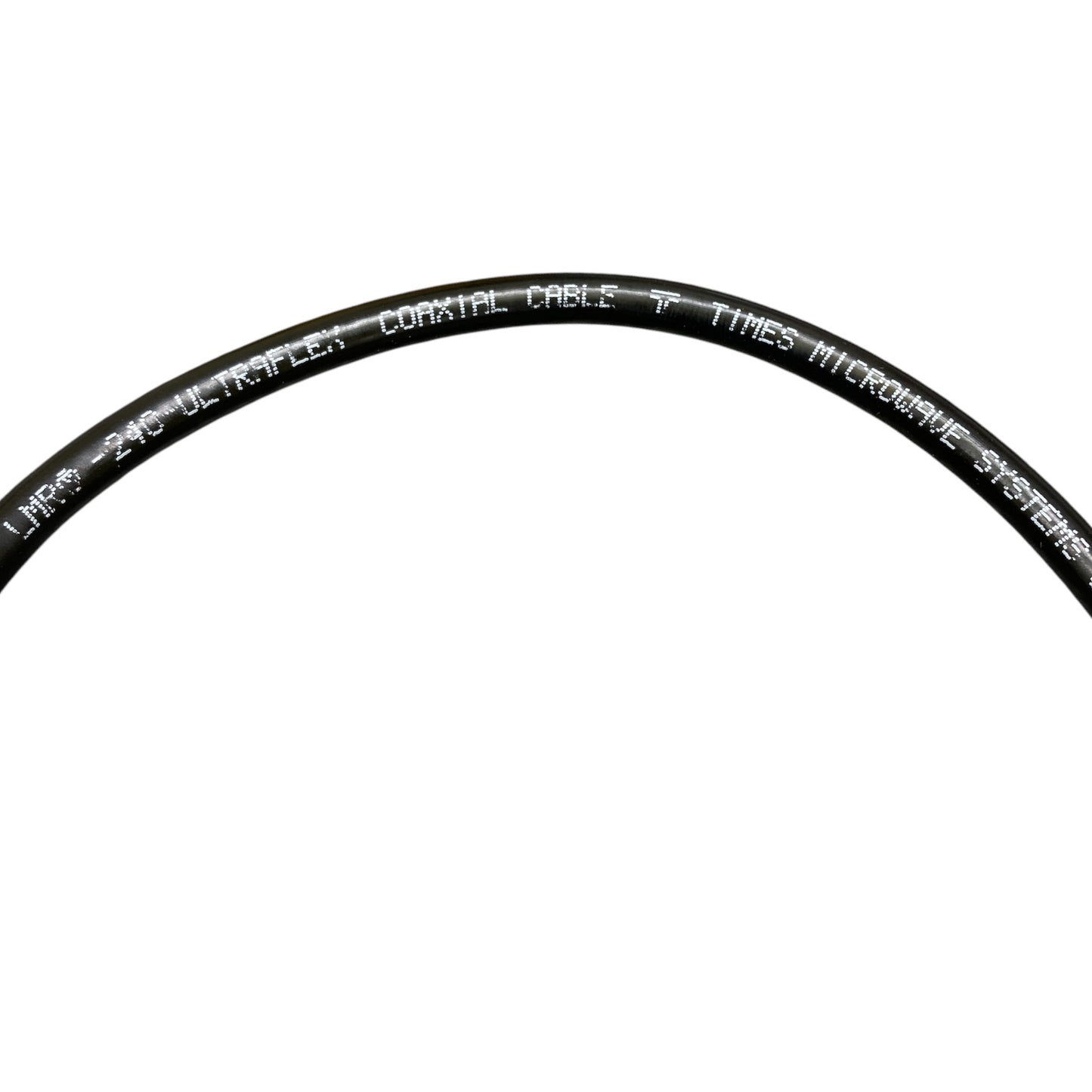

Times Microwave LMR®-240-UF Ultraflex is a high-performance, low-loss 50-ohm coaxial cable designed for both indoor and outdoor RF communications. Manufactured using premium materials and assembled with precision connectors, it delivers reliable signal transmission across a wide frequency range. Ideal for commercial, industrial, and telecom applications.
LMR® is a registered trademark of Times Microwave Systems.
- Made in USA
- TAA Compliant
- RoHS and REACH Compliant
Common Applications
- Antenna feed lines for Wi-Fi, LTE, 5G, GPS, VHF/UHF, and broadband systems
- Wireless infrastructure including DAS, base stations, and signal repeaters
- Amateur and CB radio installations
- Wireless surveillance and IoT device connectivity
- Test labs and RF measurement setups
Key Benefits
- Low signal attenuation over long distances
- Exceptional shielding and resistance to interference
- Durable and UV-resistant for outdoor use
- Stable electrical performance across wide temperature ranges
- Assembled and fully tested for quality assurance in USA
Options Available
Connector Types: See the dropdown above for connector options, if you do not see what you need, contact us. Connector types include BNC, N Type, PL-259, RP-SMA, RP-TNC SMA, SO-239, TNC, UHF, DIN
Custom Lengths: Available upon request, contact us
Custom Packaging, Labeling, Harnesses, Barcoding, Bundling: We can further customize your cable to meet your needs. Click here for options.
For custom configurations, large orders, or connector variations, please contact our sales team.
Technical Specifications
| Parameter | Specification |
|---|---|
| Impedance | 50 ohms |
| Velocity of Propagation | 80% |
| Inner Conductor | Stranded bare copper-clad aluminum (0.108" diameter) |
| Dielectric | Foam polyethylene |
| Outer Shield | Bonded aluminum tape with tinned copper braid |
| Jacket | UV-resistant thermoplastic elastomer (0.240" outer diameter) |
| Minimum Bend Radius | 0.75 inch (installation), 2.5 inches (repeated) |
| Operating Temperature Range | –40°C to +85°C (–40°F to +185°F) |
| Shielding Effectiveness | Greater than 90 dB |
| Peak Power Handling | Up to 5.6 kW |
| Weight | 0.034 lbs/ft (0.10 kg/m) |
| DC Resistance (Inner/Outer) | 4.28 / 3.89 ohms per 1000 ft |
Attenuation Table
| Frequency (MHz) |
Attenuation (dB/100 ft) |
Attenuation |
Avg Power (kW) |
|---|---|---|---|
| 30 | 1.6 | 5.3 | 1.24 |
| 50 | 2.1 | 6.8 | 0.96 |
| 150 | 3.6 | 11.9 | 0.55 |
| 220 | 4.4 | 14.4 | 0.45 |
| 450 | 6.3 | 20.8 | 0.31 |
| 900 | 9.1 | 29.8 | 0.22 |
| 1500 | 11.8 | 38.9 | 0.17 |
| 1800 | 13.0 | 42.8 | 0.15 |
| 2000 | 13.8 | 45.2 | 0.14 |
| 2500 | 15.5 | 50.9 | 0.13 |
| 5800 | 24.4 | 80.1 | 0.08 |
QUALITY AND PERFORMANCE: This cable is professionally assembled and tested in our manufacturing facility in Maryland, USA! We stand behind the quality and performance of our cables. Our cables are guaranteed to be of the highest quality and performance or your money back.
PRODUCTION DETAILS: You are purchasing a completed cable assembly with connectors professionally attached to the cable. The ends are soldered and crimped, heat shrink is applied to seal the cable to the connector and provide additional support and the cable is then tested to ensure proper assembly and performance.
SAME DAY SHIPPING: These cables are built-to-order. We have an optimized production line for these assemblies so most orders will ship the same day!
We're here to help!
Do you have questions? Contact us online or call us at 888-467-2258
Not exactly what you need? We specialize in custom work! Please ask!
