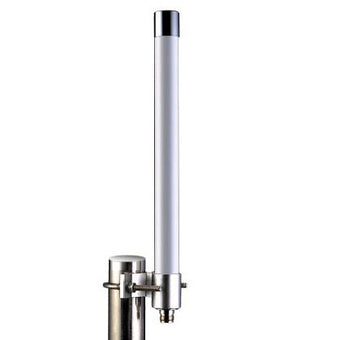

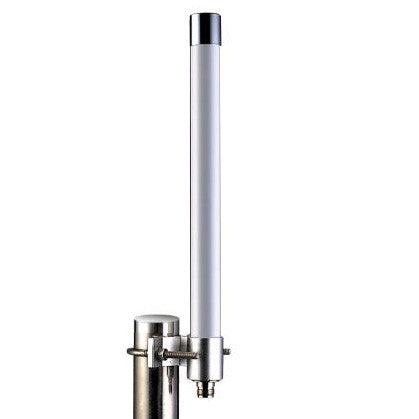

Cradlepoint Multi-Band Omni-Directional Outdoor Antenna - 170668-000
SKU: 170668-000UPC:
The CradlePoint Multi-Band Omni-Directional Antenna collects the cell tower signal and sends it to the CradlePoint router which significantly boosts cellular signal to the Cradlepoint Router
Works with all US and Canada cellular carriers - all frequencies, all bands, 3G/4G/LTE/XLTE
- 50 Ohm
- Omni-directional - no pointing required
- Significantly boosts Cellular signal to the Cradlepoint Router
- Approximately 13 inches tall
- Compact design - no ground radials needed
- Integrated N Female Connector
NOTE: A cable assembly is needed to connect this to a CradlePoint router
Antenna Gain:
| BAND | Frequency (MHz) | GAIN (dBi) |
| LTE | 698 - 803 | 3.38 |
| GSM 850 | 824 - 894 | 2.22 |
| GSM 900 | 880 - 960 | 1.44 |
| DCS | 1710 - 1880 | 5.57 |
| PCS | 1850 - 1990 | 2.49 |
| UMTS1 | 1920 - 2170 | 2.64 |
| LTE 2600 | 2490 - 2700 | 3.06 |
Package Contents:
1 – Multi-Band Omni-Directional Antenna with integrated bracket
1 – U-bolt assembly - maximum pole diameter 2 inches
