Test CA-TEST-NM-UHF-1

Cable Type: Low Loss Test

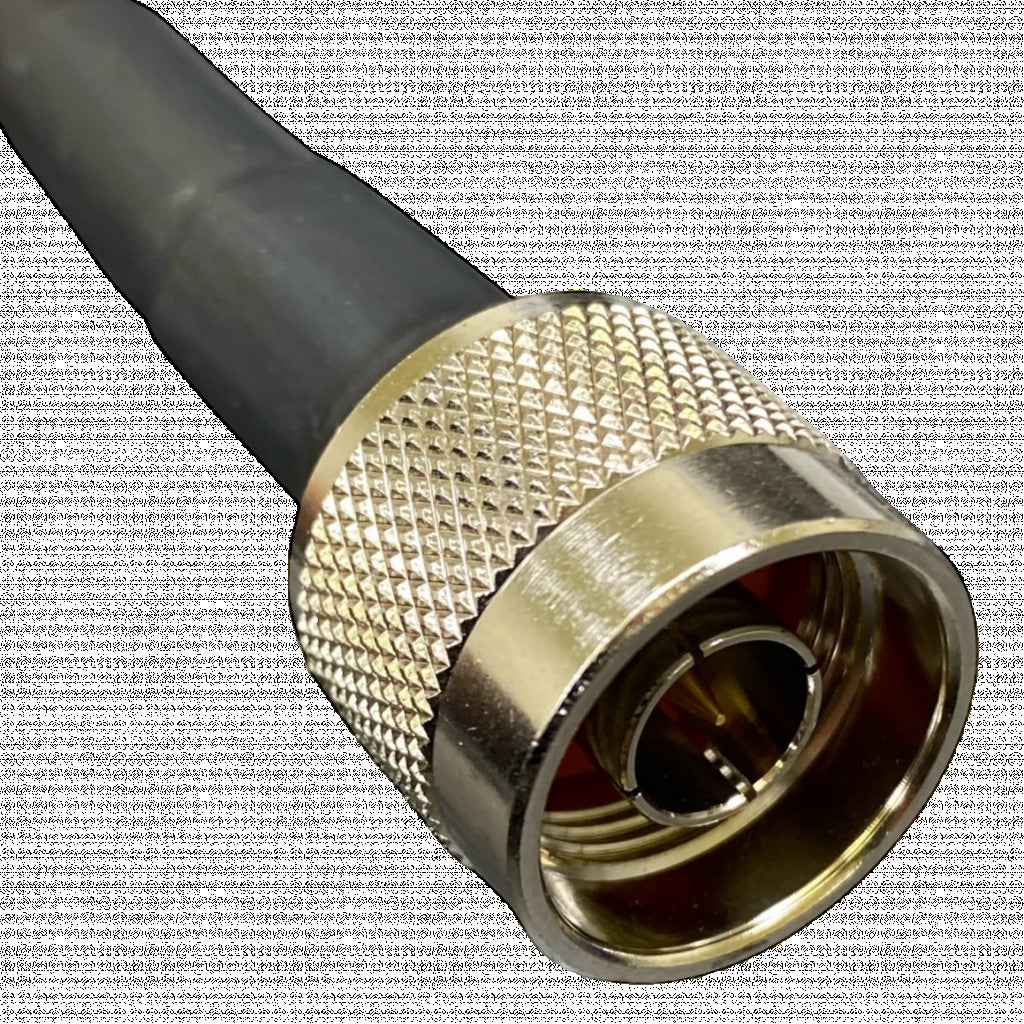

Connector 1: N Male
Connector 2: UHF Male
Length: 1 Foot

JEFA Tech® Low Loss 400 FLEX is recommended for applications where the coax cable will be in motion, for example, beam antennas that are on a rotator, short patch cables to go from your patch panel to radio equipment, or mobile applications such as land vehicles, boats and ships. Low Loss 400 FLEX has the same dimensions as Low Loss 400, but it features a stranded copper center conductor which will not break under repeated motion, a foam dielectric and double shielding for low signal loss and interference rejection, and a UV protected Thermoplastic Elastomer Jacket which is soft and flexible as compared to a Polyethylene Jacket. It is not recommended for direct burial.

TECHNICAL SUMMARY:

• 50 ohm impedance
• .405" outer diameter
• Lightweight, Flexible
• Thermoplastic Elastomer Jacket - softer, more flexible than polyethylene - full waterproofing and UV Protection
• Stranded Copper (7 x 0.036") Center Conductor
• Double Shielded for low loss and interference rejection
• First Shield: Bonded aluminum foil with 100% coverage
• Second Shield: Tinned copper braid with 98% coverage
• Foam Dielectric - adds to flexibility and performance
• 5 year warranty, 10+ year life expectancy


QUALITY AND PERFORMANCE: This cable is professionally assembled and tested in our manufacturing facility in Maryland, USA! We stand behind the quality and performance of our cables. Our cables are guaranteed to be of the highest quality and performance or your money back.

PRODUCTION DETAILS: You are purchasing a completed cable assembly with connectors professionally attached to the cable. The ends are soldered and crimped, heat shrink is applied to seal the cable to the connector and provide additional support and the cable is then tested to ensure proper assembly and performance.

SAME DAY SHIPPING: These cables are built-to-order. We have an optimized production line for these assemblies so most orders will ship the same day!

CUSTOM PACKAGING, LABELING, BUNDLING, BARCODING: We can further customize your cable.  Click here for options.

RETURN POLICY
Please order carefully! Since these cables are built-to-order, they are not returnable if you make a mistake when choosing the connector types or length. If you need assistance, please contact us.
