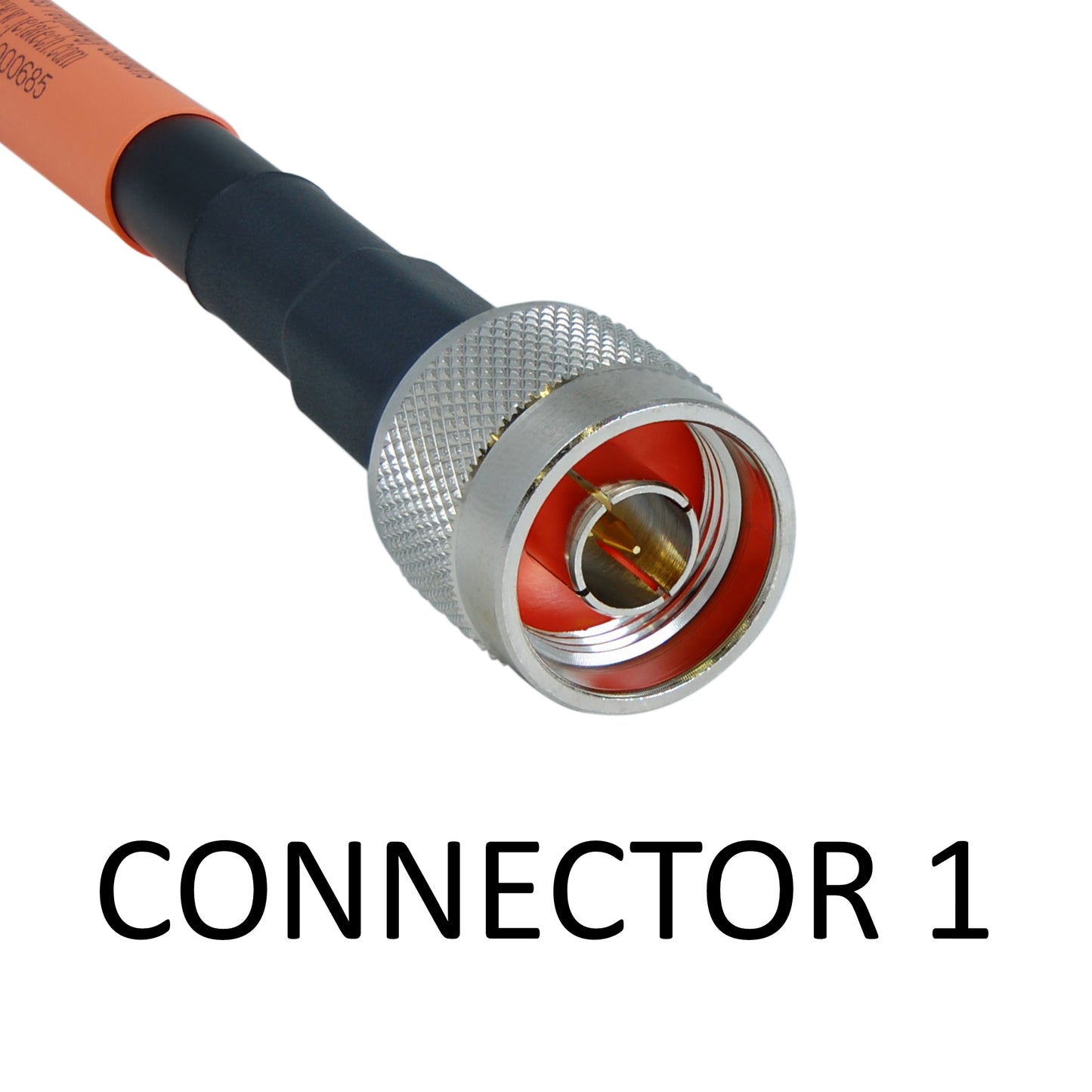

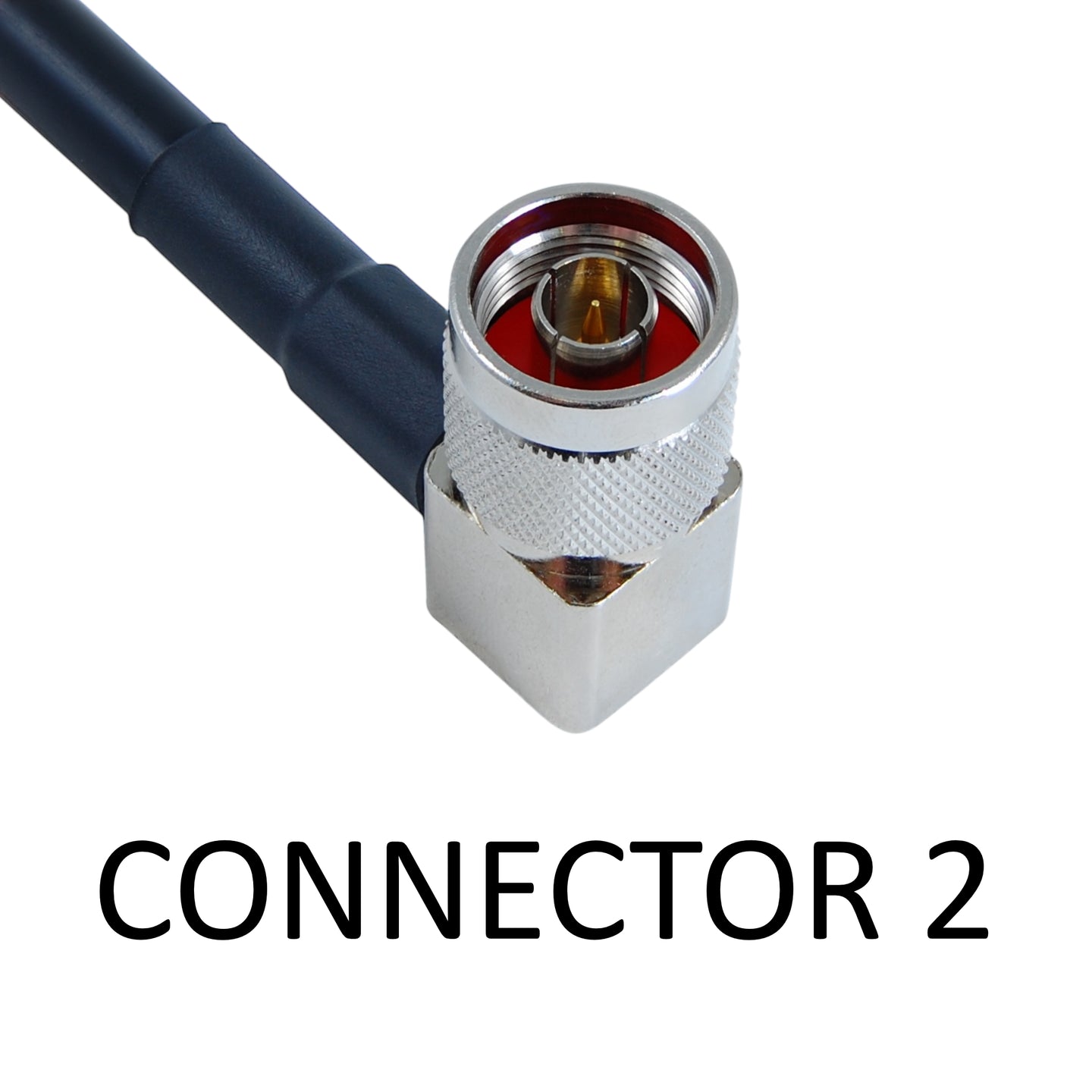

JEFA Tech Low Loss 400 - N Male to N Male Right Angle

JEFA Tech® Low Loss 400 has the perfect balance of flexibility and low signal loss. It is the most popular feed line for installations that require the lowest signal loss. It has a 0.405 inch outside diameter and features a solid center conductor for greatest performance, foam dielectric and double shielding for low signal loss and interference rejection, combined with a direct burial capable, UV resistant Polyethylene jacket.

TECHNICAL SUMMARY:

• Impedance: 50 Ohm
• Outer Diameter: 0.405"
• Jacket: UV Protected PE
• Center Conductor: Solid Copper Clad Aluminum
• Shielding Layers: Double Shield
• First Shield: Bonded Aluminum Foil 100% coverage
• Second Shield: Tinned copper braid 98% coverage
• Dielectric: Gas Injected Foam
• Direct Burial Capable: Yes
• Warranty: 5 year warranty
• Life Expectancy: 20+ years

Attenuation

• 7 Mhz (40 meters) 0.33 dB/100ft
• 14 Mhz (20 meters)0.46 dB/100ft
• 28 Mhz (10 meters & CB) 0.65 dB/100ft
• 50 Mhz (6 meters) 0.88dB/100ft
• 144 Mhz (VHF) 1.50 dB/100ft
• 220 Mhz (VHF) 1.86 dB/100ft
• 450 Mhz (UHF) 2.7 dB/100ft
• 1900 Mhz (UHF) 3.90 dB/100ft
• 1.5 Ghz (MW) 5.12 dB/100ft
• 2.5 Ghz (MW, WiFi) 6.76 dB/100ft
• 5.8 Ghz (MW, WiFi) 10.8 dB/100ft

JEFA Tech® is a trademark of JEFA Tech, Inc.

QUALITY AND PERFORMANCE: This cable is professionally assembled and tested in our manufacturing facility in Maryland, USA! We stand behind the quality and performance of our cables. Our cables are guaranteed to be of the highest quality and performance or your money back.

PRODUCTION DETAILS: You are purchasing a completed cable assembly with connectors professionally attached to the cable. The ends are soldered and crimped, heat shrink is applied to seal the cable to the connector and provide additional support and the cable is then tested to ensure proper assembly and performance.

SAME DAY SHIPPING: These cables are built-to-order. We have an optimized production line for these assemblies so most orders will ship the same day!
