5G/4G LTE 4x4 MIMO Cross-Polarized Antenna with Multi Mount Bracket

SKU: TGX.04.A.001
  • $299.95

IN STOCK: 1 - Do you need more? We have short lead times on most products! ON BACKORDER WITH SHORT LEAD TIME


Prefer to order by phone or have questions? Call us at 888-467-2258
Large order requirement or ongoing needs? Bulk discounts and credit terms are available.
Not enough of this item showing in stock? We have short lead times on most products!
Not exactly what you need? We specialize in custom work! Please ask!
Please contact us for assistance!

  • Highest efficiency for 400-6000MHz wideband applications
  • Fully 5G/4G Cellular Operational
  • Cross Polarized Dipole Antennas
  • IP67 Rated Enclosure
  • Omnidirectional Gain Patterns leading to better coverage

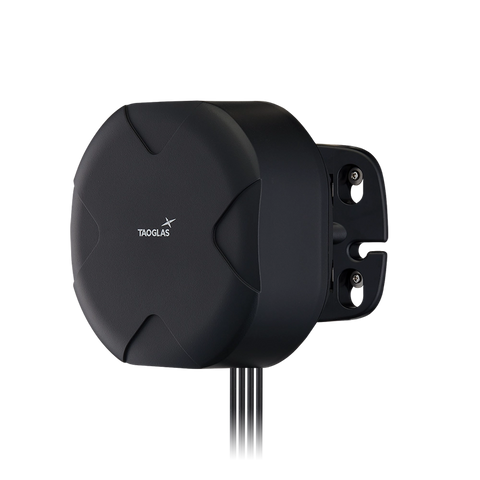

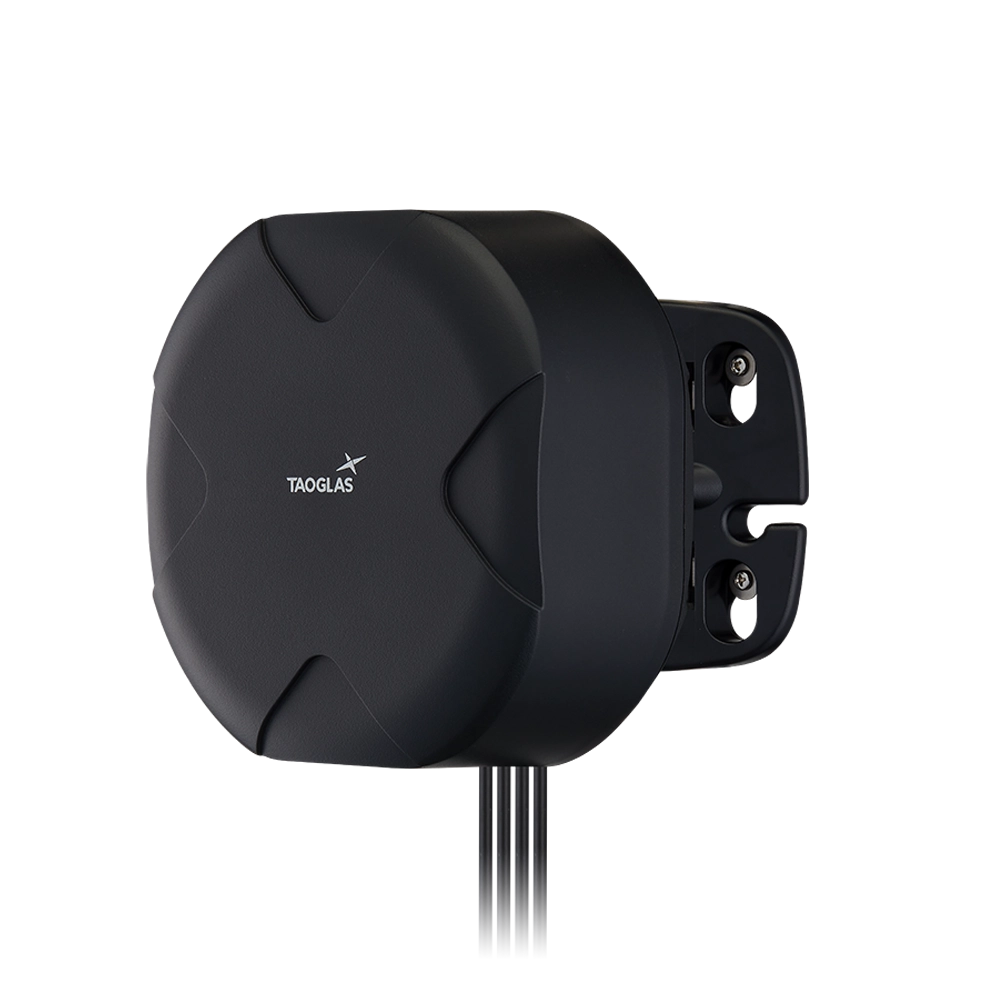

  • Multi-function bracket including Wall, Pole and Glass Mount options
  • Cable: (4) 9.8ft integrated cables with SMA Male Connectors
  • Dimensions: 6.5" x 6.5" * 6" (Including Bracket)

The TGX.04 is a 4x4 5G/4G MIMO cross-polarized omnidirectional dipole antenna with a wide bandwidth covering all worldwide sub 6GHz cellular bands from 400 to 6000MHz. It uses four dipole antennas to deliver the best possible throughput and quality improvements in transmitting and receive signal levels, leading to better coverage and performance, especially in urban environments. It is designed for multiple mounting options to allow for a variety of use cases and is supplied with 3m of low loss cable with SMA Male connectors.

Longer Extension cables available here (you need to purchase 2 "dual lead" cables to get a total of four leads for this antenna):
DUAL Lead SMA Antenna Extension Cable for 4G/LTE/5G Modems and Routers

Typical Applications include:
– Agriculture and Rural 5G
– Coverage enhancement systems
– Commercial Transportation
– Connected Enterprise
– Public Safety and First Responder

The TGX.04 design is an evolution of our hugely successful TG.45 antenna design and it is unrivalled in its ability to cover all wideband 5G/4G Sub 6GHz bands. The antenna is tuned for great performance at the recently established 5GNR bands between 3300 – 4200MHz and covers Band 31 (450MHz) and Band 71 (617MHz) at the lower end of the 5G/4G frequency spectrum. High Efficiency and stable Gain is achievable at each band on all 4 MIMO antennas.

The cross polarized antennas’ layout also enhances MIMO performance capabilities, thus improving signal quality. This is achieved by positioning the antenna elements orthogonal to each other aligning with the +/-45-degree polarized signals received from most base station antennas and in turn, enhances throughput capacity giving the user the best possible cellular performance for their device. The TGX.04 has been designed for typical applications including gateways, routers and wireless access points that require, high efficiency and unrivalled performance.

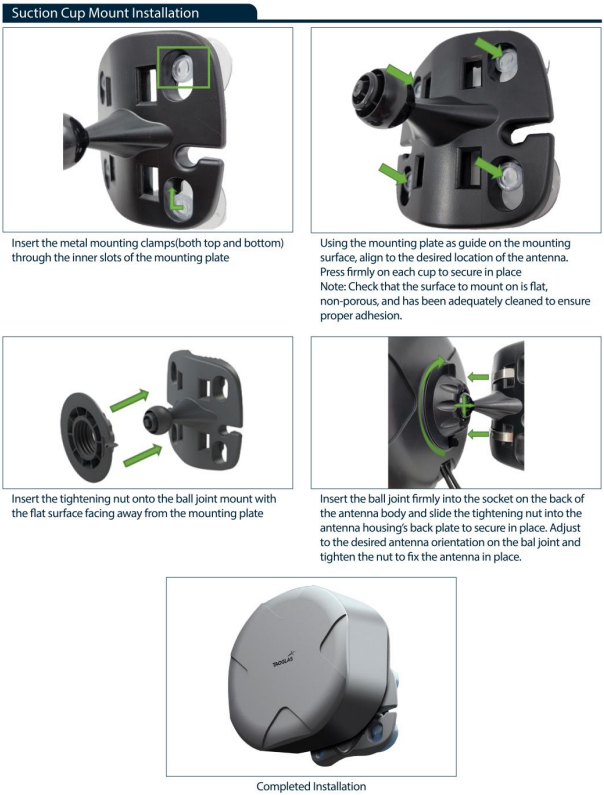

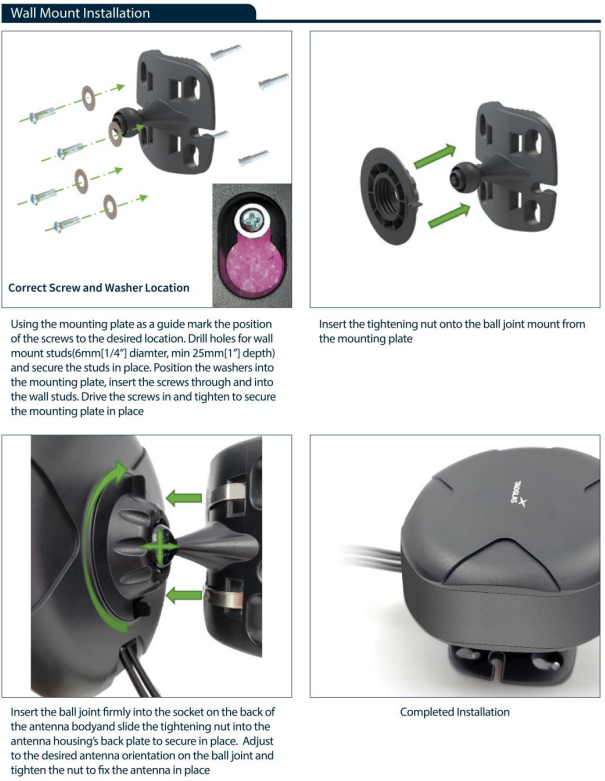

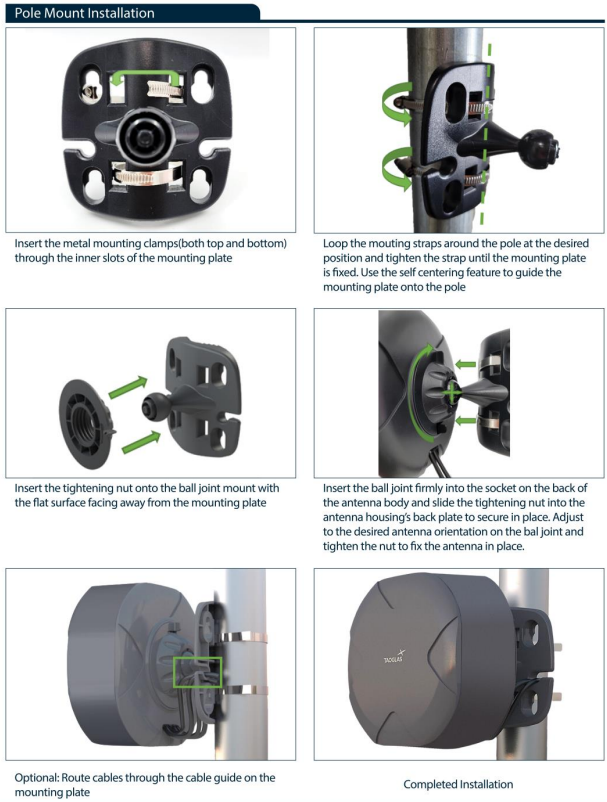

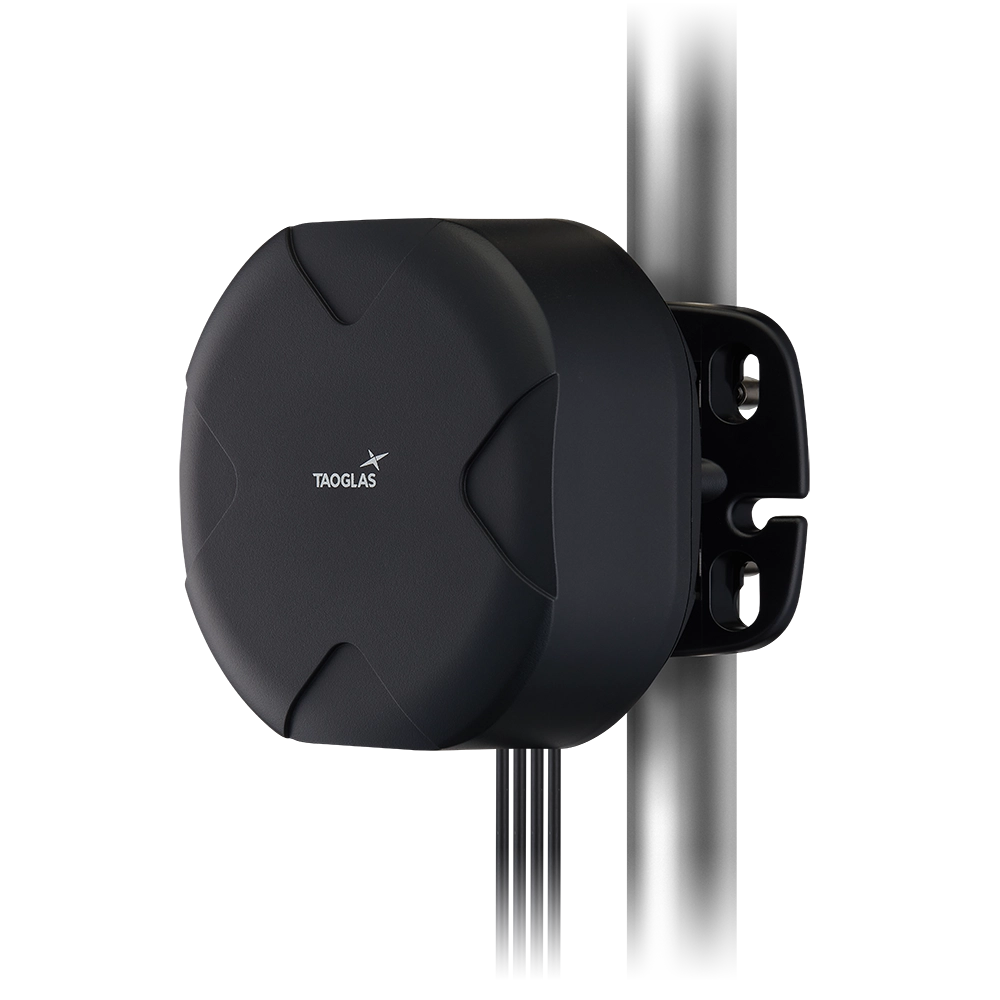

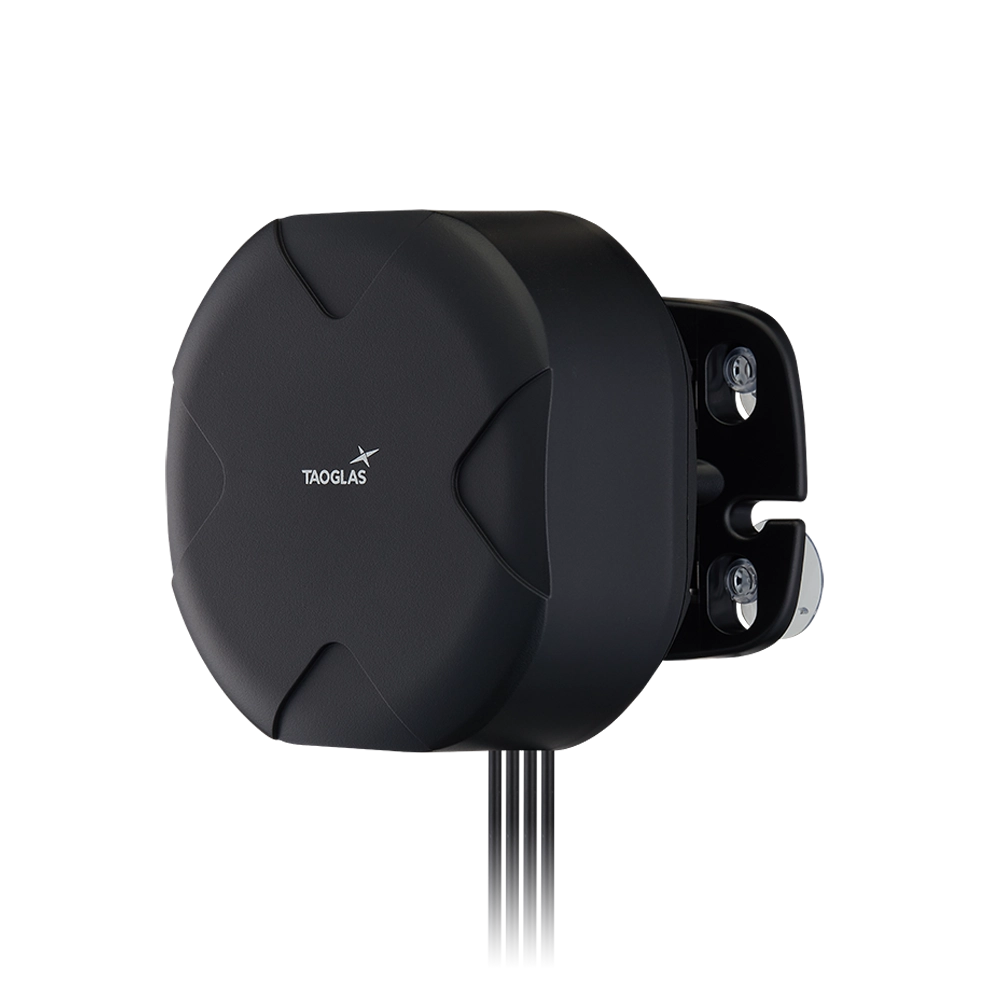

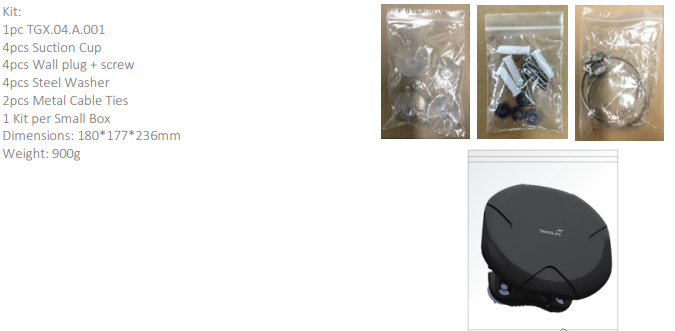

The robust TGX.04 enclosure is IP67 rated and manufactured from ASA for exceptional mechanical performance. The bracket is designed to allow for multiple mounting options, including wall or pole or mounting and it is supplied with suction cups to facilitate glass mounting. All accessories for each mounting option are included with the product. The TGX.04 is an omnidirectional antenna, but the mounting bracket allows the user to position the antenna and lock it into place for optimal performance.
