JEFA Tech LL240FR
JEFA Tech LL240FR
SKU:LL240FR-B1000
*** INVENTORY LIQUIDATION - DEEP DISCOUNT WHILE SUPPLIES LAST ***
This is high quality, brand new cable! Trusted for over 20 years with excellent reviews! JEFA Tech has made an agreement with a new manufacturer that requires us to liquidate our current inventory. More news about our new cable line soon! Prices will be higher with the new cable line, so don't wait. This liquidation deal won't last!

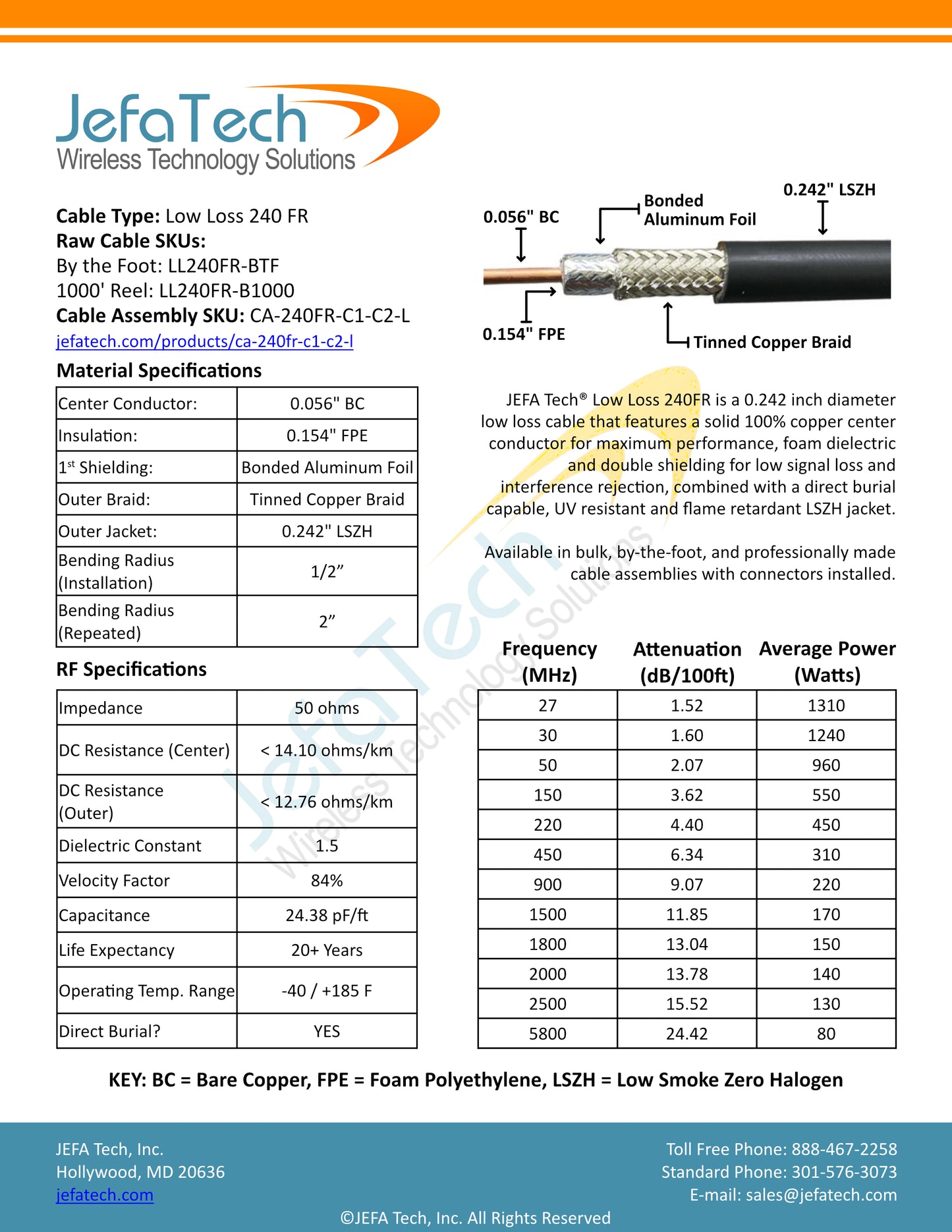

JEFA Tech Low Loss 240FR low loss coaxial cable is a non-halogenated, low smoke, fire retardant cable designed for in-building applications. This braided coaxial cable offers similar performance compared to corrugated copper cables but provides high flexibility and simplified connection. This 50 Ohm coaxial cable has a solid bare copper center conductor and stranded outer conductor. Low loss is achieved through use of the 90 % braided shield. A foam polyethylene serves as dielectric insulation.
This cable can be used in almost any application where handling characteristics, improved shielding, and low loss is required.
- Lightweight, Flexible
- Black LSZH (Low Smoke Zero Halogen) Jacket

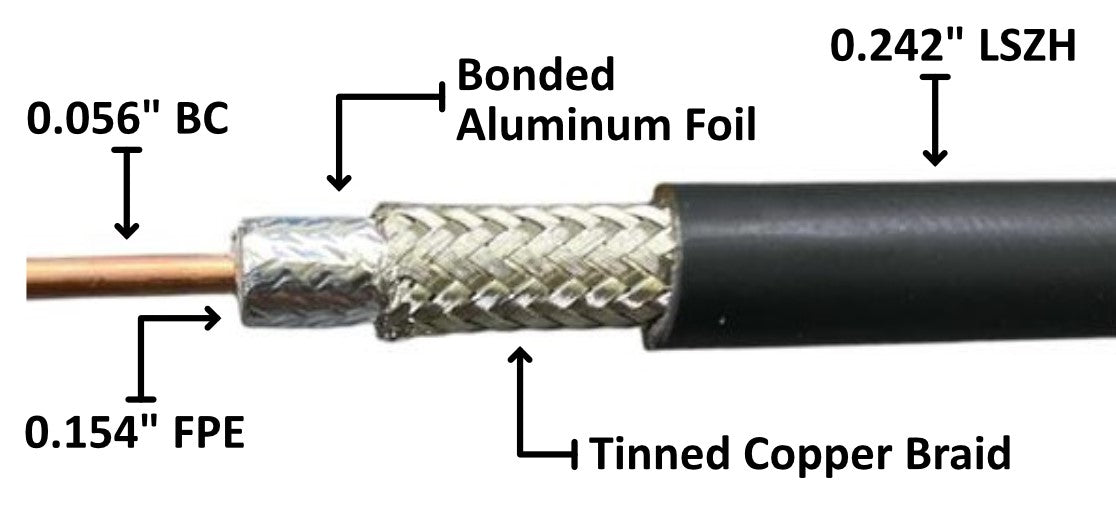

- Solid Center Conductor
- 90% tinned copper braid, plus 100% aluminum foil shield
- Overall Diameter - 0.240"
- 100% Solid Copper Center Conductor
- 0.154" FPE Foam Insulation
- 1st Shield - Bonded Alumimum Foil
- 2nd Shield - Tinned Copper Braid
- Outer Jacket - UV Protected LSZH
- Bending Radius 1/2" installed, 2" repeated
- Impedence 50 ohms
- Dielectric Constant 1.5
- Velocity Factory 84%
- Capacitance 24.38
- Life Expectancy 20+ Years
- Direct Burial Rated
| Frequency (MHz) | Band | Loss (dB/100ft) | Power (Watts) |
|---|---|---|---|
| 1 | 160 meters | 0.2 | 6860 |
| 3.5 | 80 meters | 0.5 | 3660 |
| 4 | 75 meters | 0.5 | 3420 |
| 5.3 | 60 meters | 0.6 | 2970 |
| 7 | 40 meters | 0.6 | 2490 |
| 10 | 30 meters | 0.8 | 2160 |
| 14 | 20 meters | 0.9 | 1820 |
| 18 | 17 meters | 1.0 | 1610 |
| 21 | 15 meters | 1.1 | 1490 |
| 27 | 11 meters | 1.3 | 1310 |
| 28 | 10 meters | 1.3 | 1290 |
| 50 | 6 meters | 1.7 | 960 |
| 145 | 2 meters | 3.0 | 560 |
