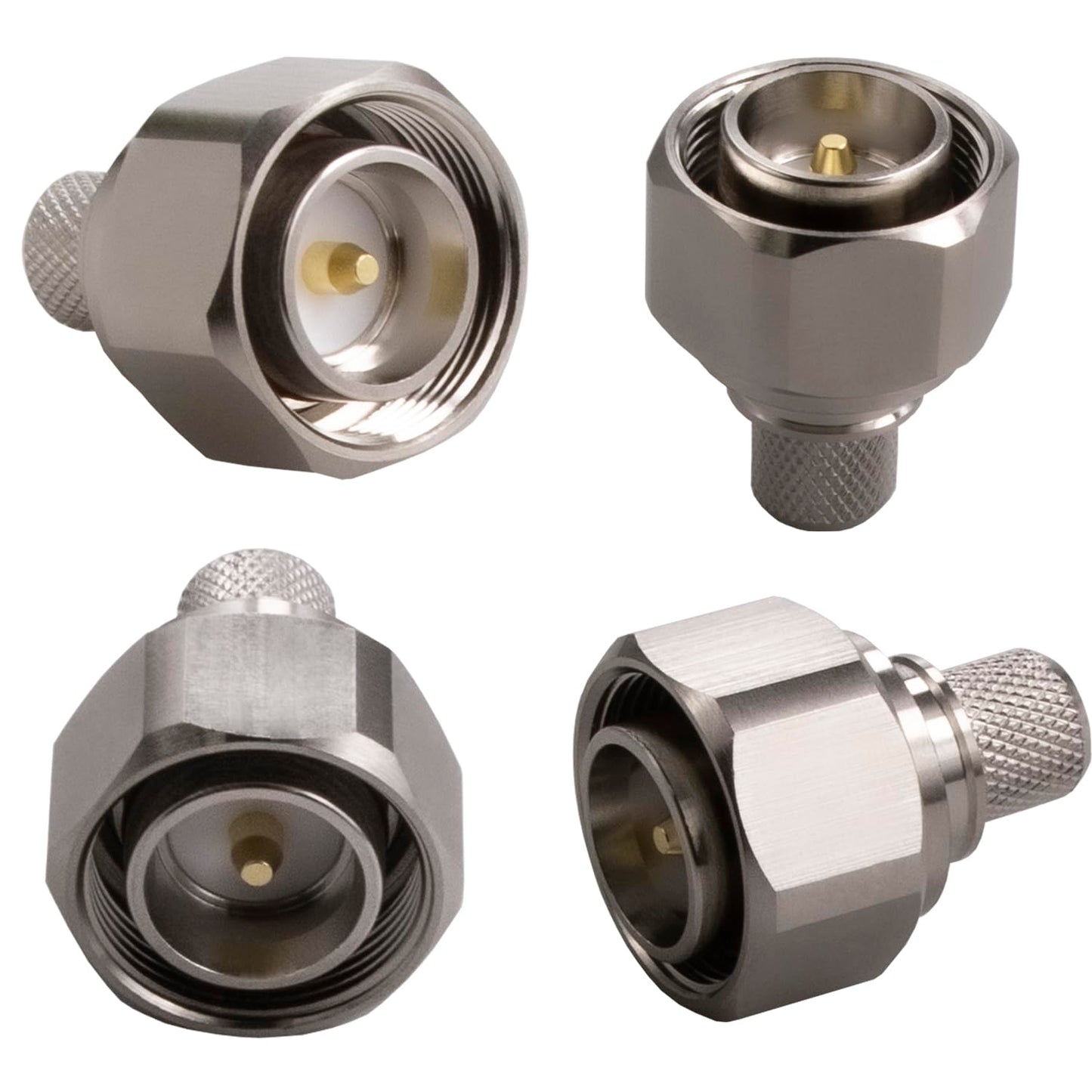

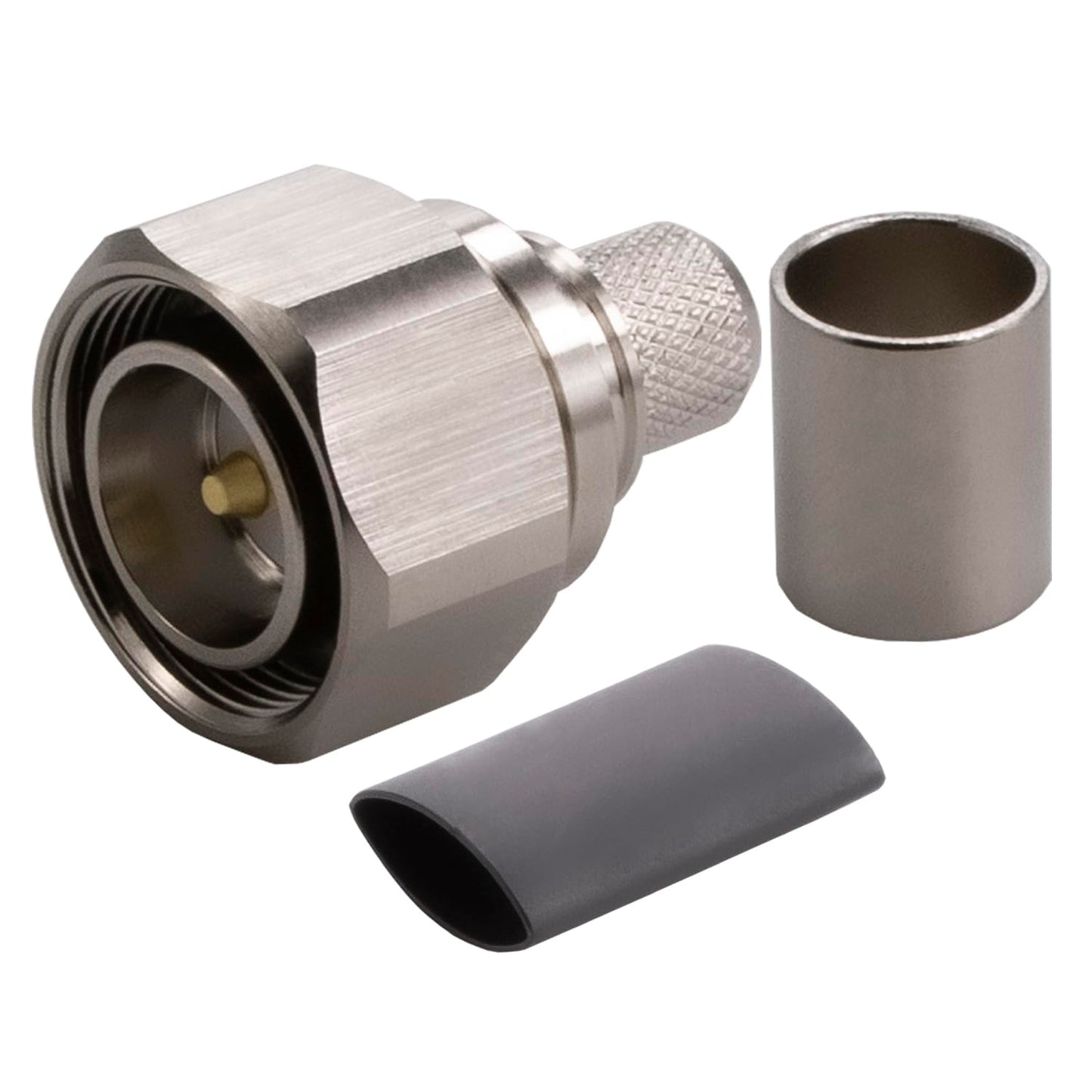

Connector: 7/16 DIN Male Captivated Pin for LL400

Connector: 7/16 DIN Male Captivated Pin for LL400

SKU / Part Number:

SKU:C400DIN

Regular price $17.93
Sale price $17.93 Regular price $0.00

Available to order now with short lead time to ship

Most orders ship the same day when ordered by noon EST. Do you have an urgent need? Contact us, we can accommodate you! Call 888-467-2258

Note - captivated pin only works with a solid center conductor cable (LL400).  Does not work with a stranded center conductor cable (RG-213/U, LL400-FLEX)

Specifications:

Connector Series: 7/16 DIN
Connector Gender: Male
Cable Types:

LL400, LMR-400

Polarity: Standard
Impedance (Ohm): 50 Ohm
Body Style: Straight
Body Material: Nickel Plated Brass
Center Pin Material: Nickel Plated Brass
Body/Ferrule Attachment: Crimp
Center Pin Attachment: Non solder captivated



Recommended Tools:

Strip Tool - PA1256 or CST-400

Crimp Tool - HT-336D2
