WilsonPro IoT 5-Band M2M Booster - 5G and 4G LTE 5-Band Direct Connect In-Line Signal Booster - Weboost 460119

WilsonPro IoT 5-Band M2M Booster - 5G and 4G LTE 5-Band Direct Connect In-Line Signal Booster - Weboost 460119

SKU / Part Number:

SKU:460119

Regular price $389.99
Sale price $389.99 Regular price $399.99

Most orders ship the same day when ordered by noon EST. Do you have an urgent need? Contact us, we can accommodate you! Call 888-467-2258

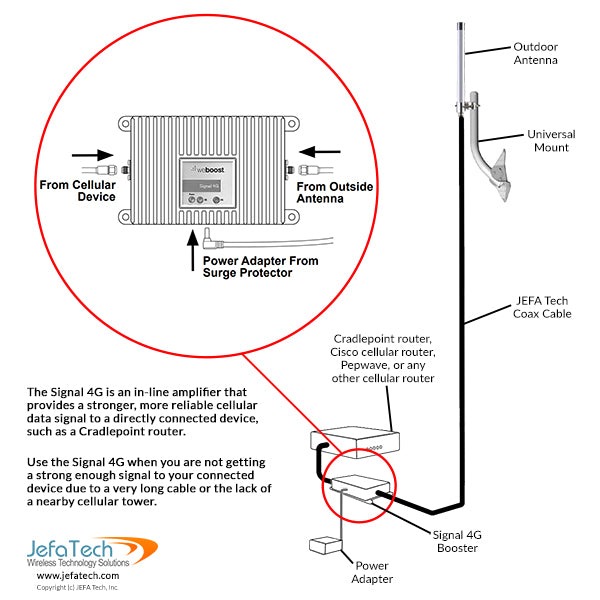

jefatech_4g_booster_diagram

Do you need a stronger signal from your directly connected cellular modem/router device?  The IoT 5-Band In-Line Signal Booster is an in-line amplifier that provides a stronger, more reliable cellular data signal to a directly connected device.  This will increase your signal reliability and speed to and from the cell tower.

Example devices you can boost include:

  • Cellular Broadband Modem/Routers such as Cradlepoint, Pepwave
  • Home 5G Internet devices such as T-Mobile Home Internet, Verizon Wireless Home Internet

Use the IoT 5-Band In-Line Signal Booster when you are not getting a strong enough signal to your connected device due to a very long cable or the lack of a nearby cellular tower.

This is a directly connected booster meaning it must be hardwire connected to the device to be boosted.  It is not a wireless booster or repeater.

The IoT 5-Band In-Line Signal Booster is installed in-line between the antenna port on your device and the cable leading the outside antenna.

Features

  • Installs in minutes, no configuration needed
  • Works with all cell carriers, Verizon, T-mobile, AT&T and also works with prepaid carriers such as Mint, Tello, Visible, etc.
  • Works with 5G and 4G LTE, does not boost 5G Ultra-Wideband signals
  • Friendly, U.S.-based customer support
  • FCC & Industry Canada Certified

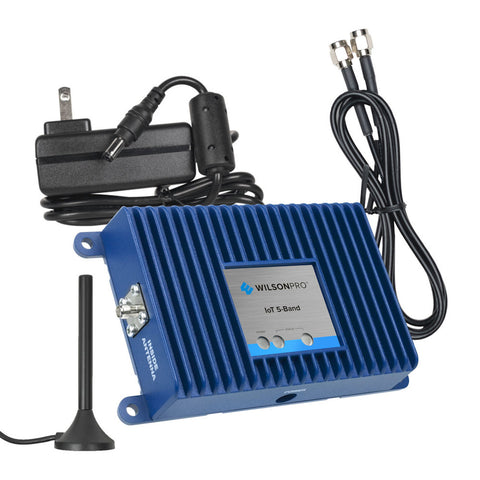

Kit includes

  • IoT 5-Band In-Line Signal Booster
  • Magnet mount antenna with 12ft of cable (this is included for FCC compliance as the booster can not be sold without an antenna.  You may use the cable and antenna of your choice)
  • 3FT RG174 SMA Male to SMA Male cable for connection to the device to be boosted
  • AC power supply


Specs
Model Number 460119
Frequency
Band 12/17 700 MHz
Band 13 700 MHz
Band 5 850 MHz
Band 4 1700/2100 MHz
Band 25/2 1900 MHz
Max Gain 15 dB
Max Uplink Power 24 dBm
Max Downlink -3 dBm
Connector to device: SMA Female
Connector to antenna: SMA Female
Dimensions 6.2 x 3.6 x 1.3 inch / 15.7 x 9.1 x 3.3 cm
Weight 1.2 lbs / 0.54 kg
