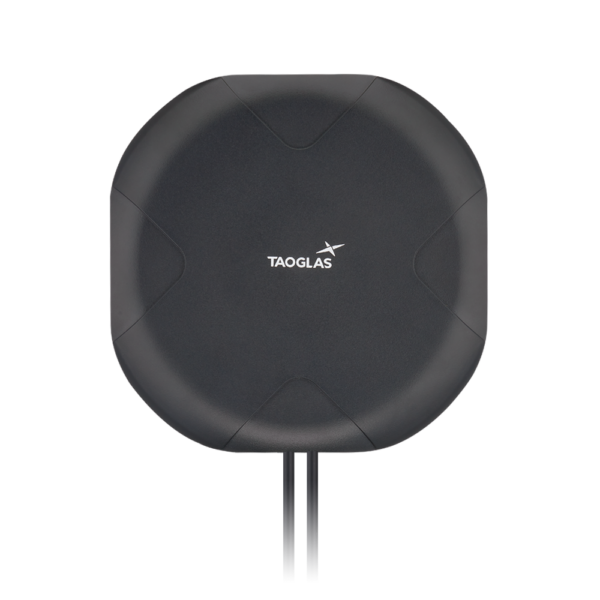

5G/4G LTE 2x2 MIMO Two Lead Cross-Polarized Antenna with Multi Mount Bracket

Reliable, high-speed signal boost for routers with two cellular antenna ports

Enhance the speed, stability, and coverage of your LTE/5G connection with this 2×2 MIMO antenna.
Perfect for routers with two cellular ports, this antenna uses cross-polarized dipoles to improve signal diversity, reduce interference, and deliver more consistent performance—even in urban or obstructed environments.

✅ When to Use

• You have a 2-port LTE/5G modem router (2×2 MIMO)
• You want stronger, faster cellular connectivity—especially indoors or in fringe areas
• You need mounting flexibility for RV, home, office, or industrial applications
• You're looking for a weatherproof, dependable antenna with built-in cables

🔌 Compatibility

• Works with all major global carriers (AT&T, Verizon, T-Mobile, US Cellular, and others)
• Compatible with popular routers from Cradlepoint, Pepwave, MoFi, NETGEAR, Inseego, etc.
• Designed for routers with two removable SMA antenna ports — plug-and-play ready

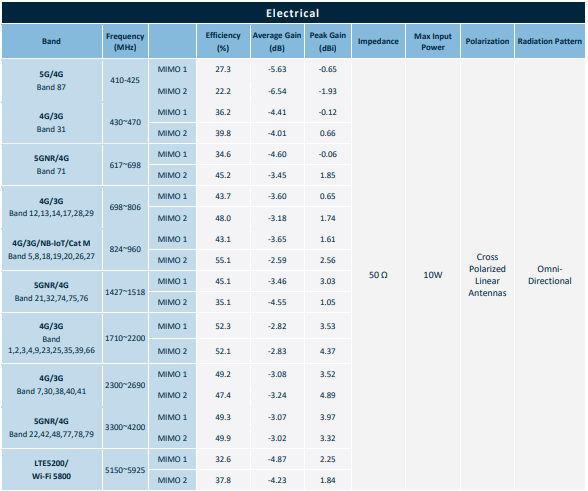

📡 Wideband Frequency Support

• Covers 400–6000 MHz:
  • 5G/4G low band: 400–960 MHz
  • 5G/4G mid band: 1.7–2.7 GHz
  • 5G high band & CBRS up to 6 GHz
• Omnidirectional gain pattern – no need to point the antenna
• Cross-polarized design for higher throughput and better signal diversity

📶 Why 2×2 MIMO?

• Fully utilizes your router’s dual antenna ports
• Greatly improves signal strength and reliability versus single-lead antennas
• Ideal for streaming, remote access, failover setups, and rural coverage
• Looking for a 4-port version? See our 4×4 MIMO antenna model

📏 Technical Specs

• Enclosure: Rugged and weather-sealed (IP67-rated)
• Cables: (2) integrated 9.8 ft (3m) low-loss cables with SMA Male connectors
• Impedance: 50 Ohm
• Size: 6.5" x 6.5" x 6" (including bracket)
• Operating temp: –40°C to +80°C

🔧 Mounting Options (Included)

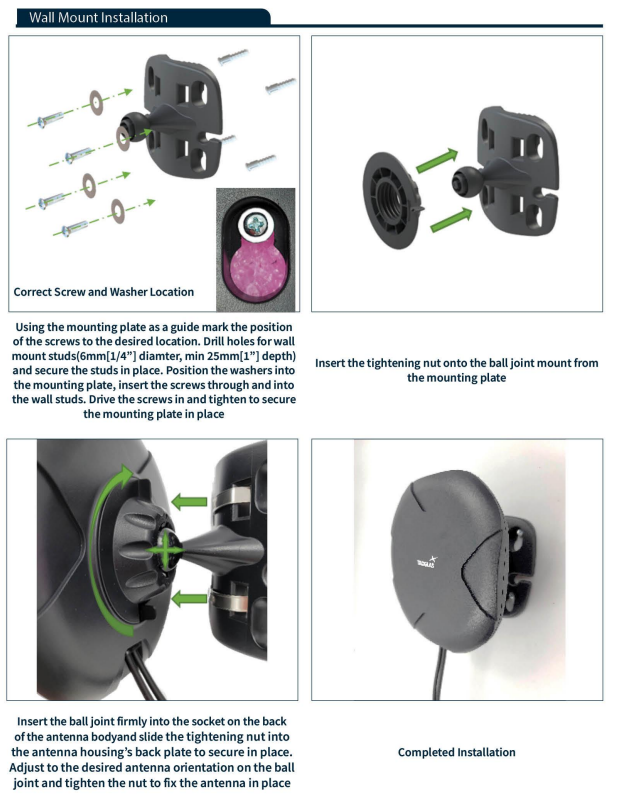

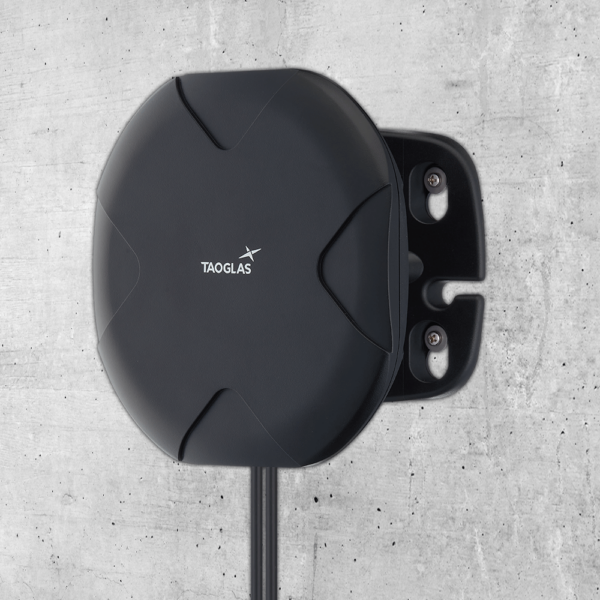

• 🧱 Wall mount

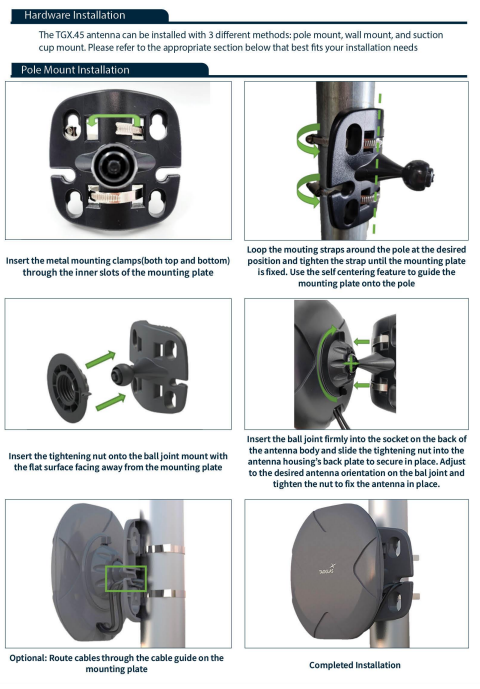

• 📍 Pole mount

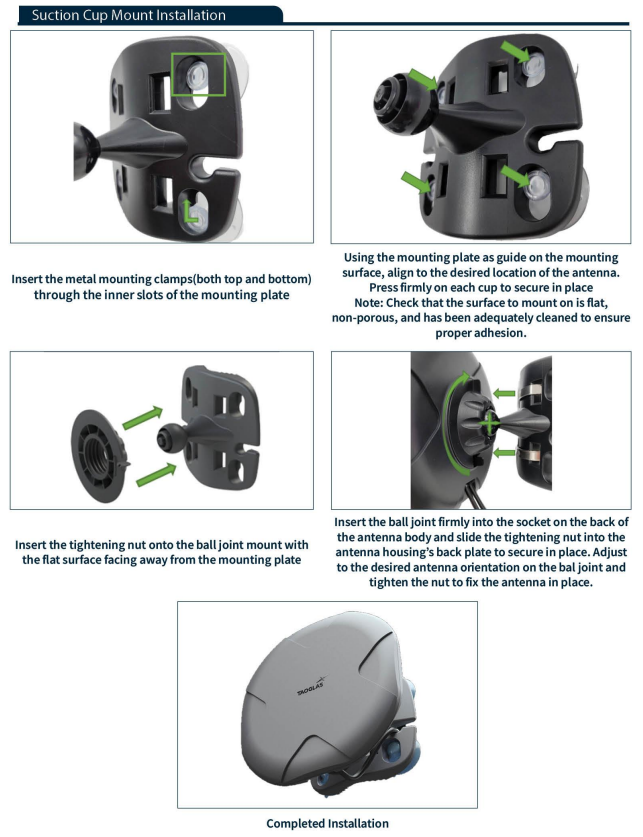

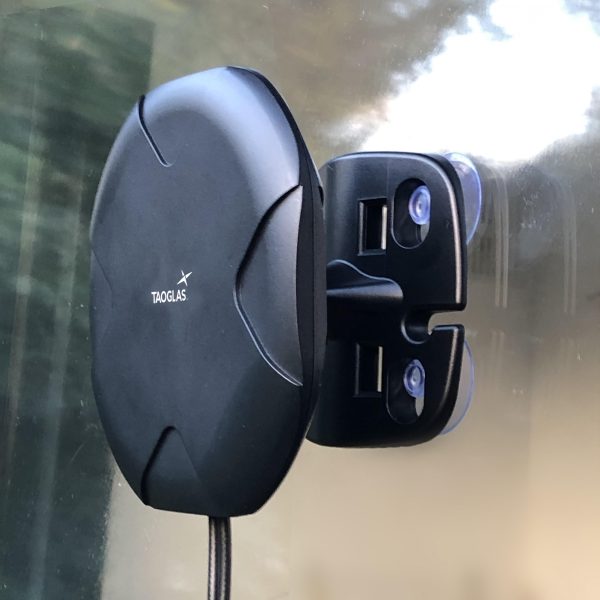

• 🪟 Suction cup window mount

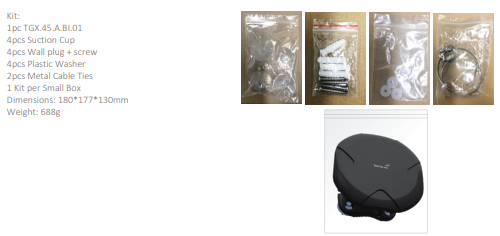

All mounting hardware is included—ready for immediate deployment.

➕ Optional Accessories

• Need extra cable length? Choose from extension coax cables in the dropdown before checkout.

🚀 Upgrade Your Signal, Stay Connected

This 2×2 MIMO antenna is the perfect companion for your dual-port LTE/5G router.
Better signal. More speed. Greater reliability. Wherever you go.

Longer Extension cables available here:
DUAL Lead SMA Antenna Extension Cable for 4G/LTE/5G Modems and Routers
