JEFA Tech LL240-FLEX / Premium RG-8X / White Jacket

JEFA Tech Low Loss 240 FLEX is ideal for portable operation when small cable size and flexibility is important. It has signal lower loss and is more flexible as compared to Low Loss 195. It has an overall outside diameter of 0.242 inches. It features a stranded copper center conductor which will not break under repeated motion and provides greater flexibility, a foam dielectric and double shielding for low signal loss and interference rejection, and a UV protected, Polyethylene jacket.

• Lightweight, Flexible
• WHITE Polyethylene Jacket with UV Protection
• Stranded Center Conductor
• 90% tinned copper braid, plus 100% aluminum foil shield

Note: JEFA Tech Low Loss 240 FLEX and JEFA Tech Premium RG-8X is the same cable

• Overall Diameter - 0.242"

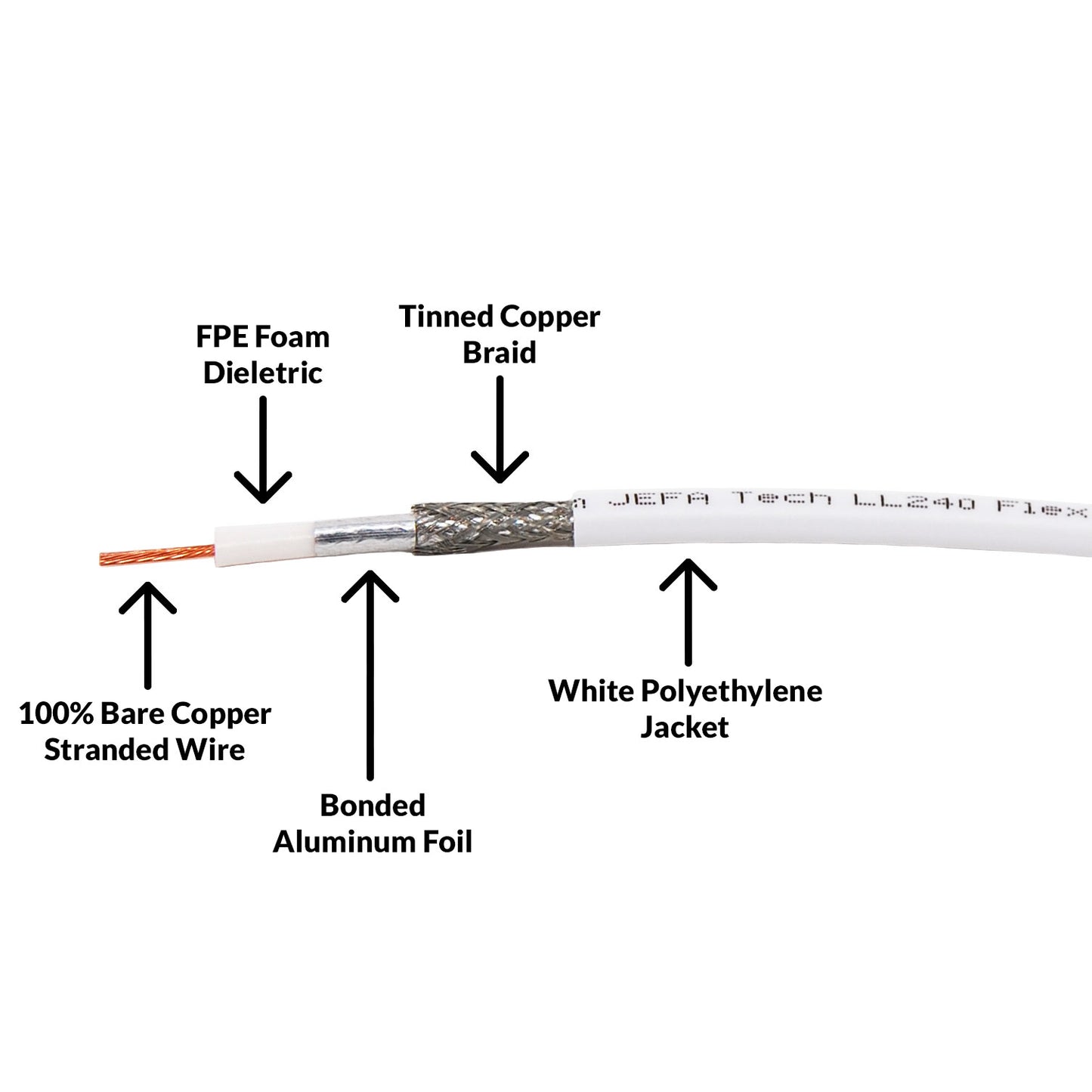

• 100% Bare Copper Stranded Wire Center Conductor - 19 strands
• 0.154" FPE Foam Insulation
• 1st Shield - Bonded Aluminum Foil
• 2nd Shield - Tinned Copper Braid
• Outer Jacket - UV Protected Polyethylene (PE)
• Bending Radius 1/2" installed, 2" repeated
• Impedance 50 ohms
• Dielectric Constant 1.5
• Velocity Factory 84%
• Capacitance 24.38
• Life Expectancy 20+ Years
• Direct Burial Rated
