JEFA Tech LL195
JEFA Tech LL195
SKU / Part Number:
SKU:LL195-BTF
Regular price
$0.37
Sale price
$0.37
Regular price
$0.00
Unit price
per
Most orders ship the same day when ordered by noon EST. Do you have an urgent need? Contact us, we can accommodate you!
JEFA Tech® Low Loss 195 is thin and light, making it great for permanently installed short pigtails. It has a 0.195 inch outside diameter and features a solid center conductor for excellent performance, foam dielectric with double shielding for low signal loss and interference rejection, and a UV resistant Polyethylene jacket for environmental protection.
We stand behind the quality and performance of the cable and offer a 30 day money back guarantee.
- Lightweight, Flexible
- Polyethylene Jacket, UV Protection
- Direct Burial Rated
- Solid Center Conductor
- 50 ohm
- 98% tinned copper braid, plus 100% aluminum foil shield

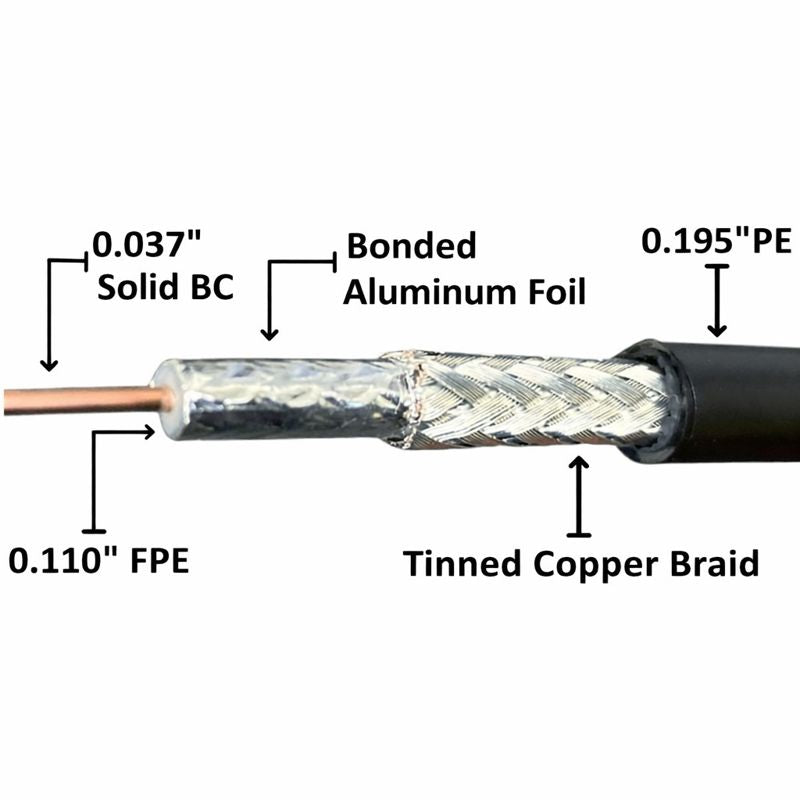

Technical Details:
- Overall Diameter - 0.195"
- 100% Bare Copper Wire Center Conductor
- FPE Foam Insulation
- 1st Shield - Bonded Alumimum Foil
- 2nd Shield - Tinned Copper Braid
- Outer Jacket - UV Protected Polyethelene (PE)
- Impedence 50 ohms
- Dielectric Constant 1.5
- Velocity Factor 80%
- Capacitance 25.40
- Life Expectancy 20+ Years
- Direct Burial Rated
| Frequency (MHz) | Band | Loss (dB/100ft) |
|---|---|---|
| 1 | 160 meters | 0.4 |
| 3.5 | 80 meters | 0.7 |
| 4 | 75 meters | 0.7 |
| 5.3 | 60 meters | 0.8 |
| 7 | 40 meters | 1.0 |
| 10 | 30 meters | 1.1 |
| 14 | 20 meters | 1.4 |
| 18 | 17 meters | 1.5 |
| 21 | 15 meters | 1.7 |
| 27 | 11 meters | 1.9 |
| 28 | 10 meters | 1.9 |
| 50 | 6 meters | 2.6 |
| 145 | 2 meters | 4.4 |
JEFA Tech®, Registered trademark of JEFA Tech, Inc.
