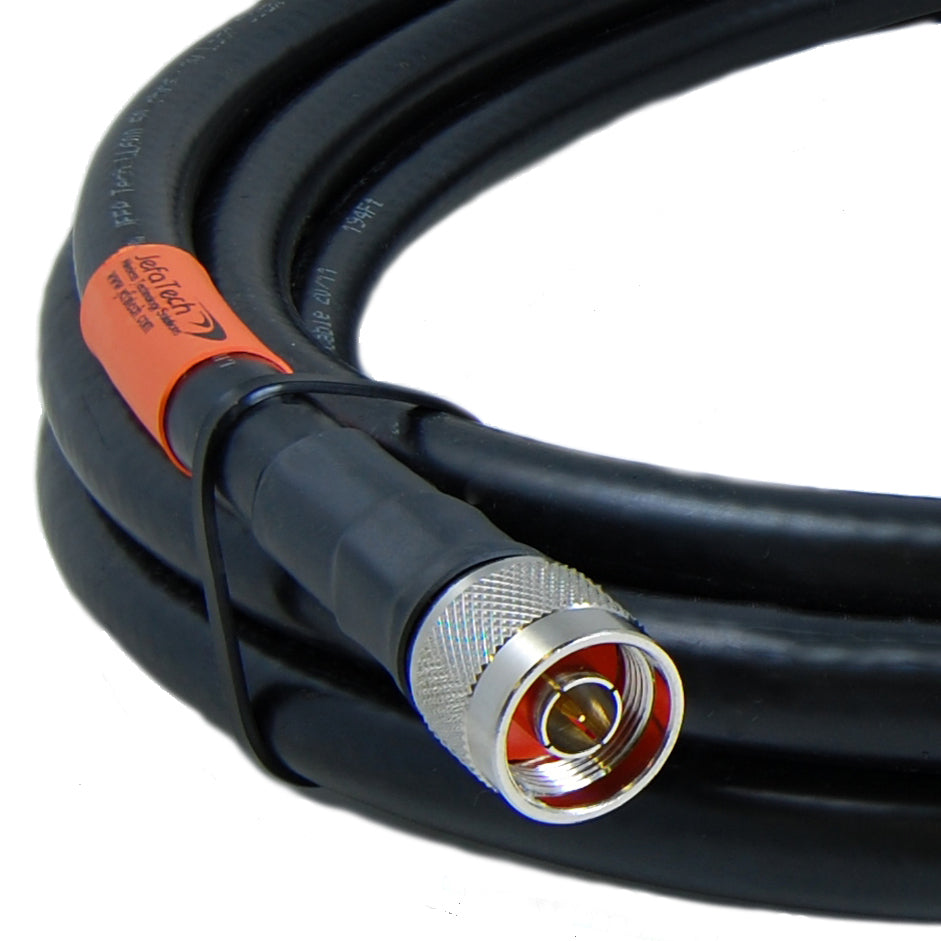

Times Microwave LMR-600 N Male Cable Assembly
Times Microwave LMR-600 N Male Cable Assembly
SKU:CA-600-NM-NM-50
Cable Type: LMR-600
Connector 1: TC-600-NMH-X - N Male
Connector 2: TC-600-NMH-X - N Male
Times Microwave LMR-600 is a 0.590 inch outside diameter feedline featuring a solid copper clad aluminum center conductor, foam dielectric and double shielding consisting of tinned copper braid and aluminum foil for low signal loss and interference rejection, combined with a direct burial capable, UV resistant Polyethylene jacket.
TECHNICAL SUMMARY:
- 50 ohm impedance
- 0.59" outer diameter
- Polyethylene Jacket - provides full waterproofing and UV Protection
- Solid Copper Clad Aluminum Center Conductor
- Direct Burial Rated - no conduit needed
- Double Shielded for low loss and interference rejection
- First Shield: Bonded aluminum foil with 100% coverage
- Second Shield: Tinned copper braid with 98% coverage
- Foam Dielectric - adds to flexibility and performance
LMR-600 Attenuation and Power Handling Chart
Attenuation (Signal Loss) per 100/ft - (lower numbers are better)
Frequency / Band | Attenuation |
Average Power |
7 Mhz (40 meters) | 0.2 dB / 100ft | |
14 Mhz (20 meters) | 0.3 dB / 100ft | |
28 Mhz (10 meters & CB) | 0.4 dB / 100ft | 5.5 kW |
50 Mhz (6 meters) | 0.6 dB / 100ft | 4.2 kW |
144 Mhz (VHF) | 1.1 dB / 100ft | 2.5 kW |
220 Mhz (VHF) | 1.3 dB / 100ft | 2.0 kW |
450 Mhz (UHF) | 2.0 dB / 100ft | 1.3 kW |
900 Mhz (UHF) | 2.8 dB / 100ft | 0.9 kW |
1.5 Ghz (MW) | 3.8 dB / 100ft | |
2.5 Ghz (MW, WiFi) | 5.0 dB / 100ft | |
5.8 Ghz (MW, WiFi) | 8.2 dB / 100ft |
QUALITY AND PERFORMANCE: This cable assembly is professionally assembled and tested in our manufacturing facility in Maryland, USA! We stand behind the quality and performance of our cables. Our cables are guaranteed to be of the highest quality and performance or your money back.
PRODUCTION DETAILS: You are purchasing a completed cable assembly with connectors professionally attached to the cable. The ends are soldered and crimped, heat shrink is applied to seal the cable to the connector and provide additional support and the cable is then tested to ensure proper assembly and performance.
We use Agilent N9912A RF Analyzers for cable sweep testing.
SAME DAY SHIPPING: These cables are built-to-order. We have an optimized production line for these assemblies so most orders will ship the same day!
CUSTOM PACKAGING, LABELING, BUNDLING, BARCODING: We can further customize your cable. Click here for options.
RETURN POLICY
Since these cables are built-to-order, they are not returnable if you make a mistake when choosing the connector types or length, or if you change your mind after purchase. If you need assistance, please contact us.
We're here to help!
- Prefer to order by phone or have questions? Call us at 888-467-2258
- Large order requirement or ongoing needs? Bulk discounts and credit terms are available.
- Not enough of this item showing in stock? We have short lead times on most products!
- Not exactly what you need? We specialize in custom work! Please ask!
