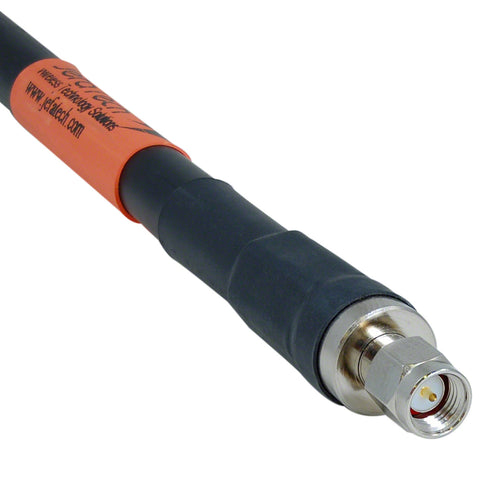

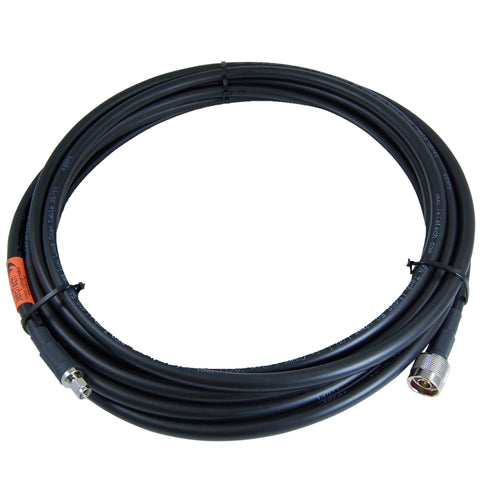

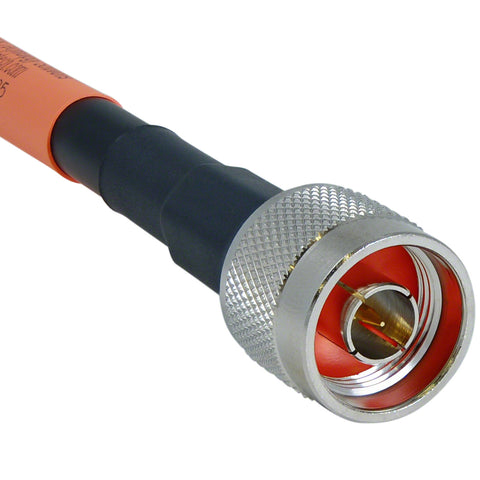

CradlePoint to External Antenna Cable Assembly - SMA Male to N Male

SKU:
  • $0.00



Need help? Have questions? Prefer to order by phone? Call us at 888-467-2258

JEFA Tech Low Loss 400 FLEX Cable assemblies have been tested and certified by CradlePoint for use with all AER, COR IBR, IBR, ARC, CBA, and MBR models.

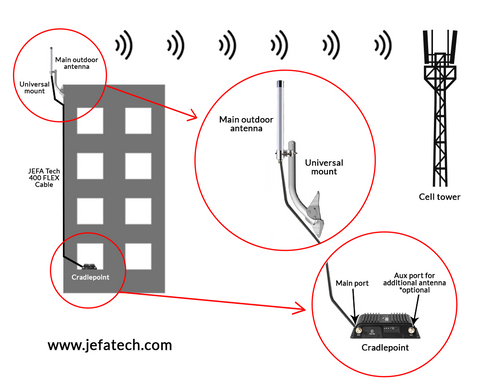

This cable directly connects any AER, COR IBR, IBR, ARC and CBA model CradlePoint to any of the following CradlePoint recommended antennas:
Omnidirectional Antenna Part # 170668-000
Omnidirectional XLTE Antenna Part # 170668-000
Directional Patch Part # 170587-000
Directional Yagi Part # 170588-000

CradlePoint MBR models with a "USB stick" modem will need a TS9 to SMA adapter in addition to this cable.

QUALITY AND PERFORMANCE: This cable is professionally assembled and tested in our manufacturing facility in Maryland, USA! We stand behind the quality and performance of our cables. Our cables are guaranteed to be of the highest quality and performance or your money back.

PRODUCTION DETAILS: You are purchasing a completed cable assembly with connectors professionally attached to the cable. The ends are soldered and crimped, heat shrink is applied to seal the cable to the connector and provide additional support and the cable is then tested to ensure proper assembly and performance.

We use an Agilent N9912A RF Analyzer for cable sweep testing.

SAME DAY SHIPPING: These cables are built-to-order. We have an optimized production line for these assemblies so most orders will ship the same day!

RETURN POLICY
Stock lengths of 20ft and 50ft are returnable if still in unused condition.  Custom lengths are made to order and not returnable if you choose the wrong length for your application!

TECHNICAL SUMMARY:

  • 50 ohm impedance
  • .405" outer diameter (same as RG-8, RG-213, LMR-400, etc)
  • Lightweight, Flexible
  • Thermoplastic Elastomer Jacket - softer, more flexible than polyethelene - full waterproofing and UV Protection
  • Stranded Copper (7 x 0.036") Center Conductor
  • Double Shielded for low loss and interference rejection
  • First Shield: Bonded aluminum foil with 100% coverage
  • Second Shield: Tinned copper braid with 98% coverage
  • Foam Dieletric - adds to flexibility and performance
  • 5 year warranty, 20+ year life expectancy
