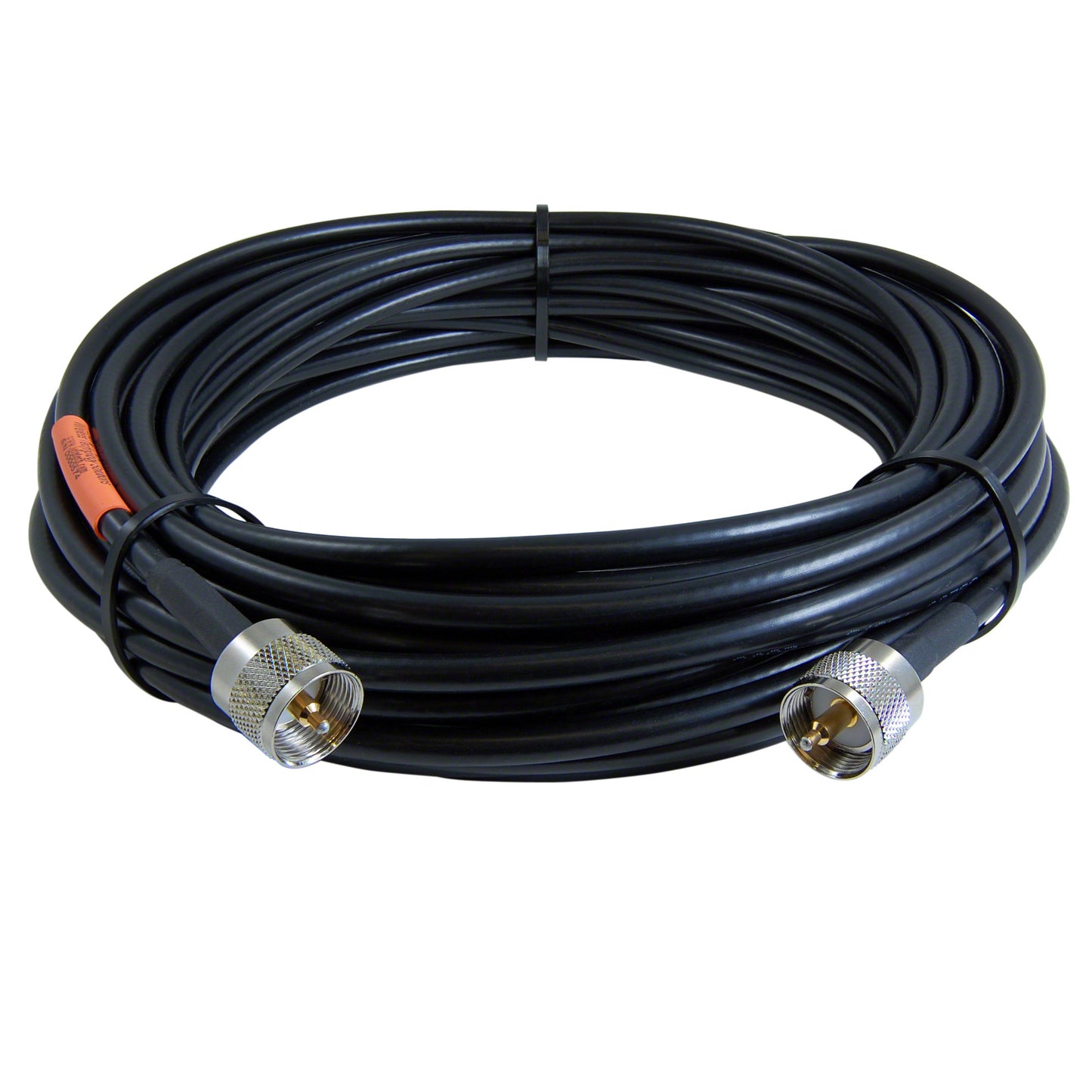

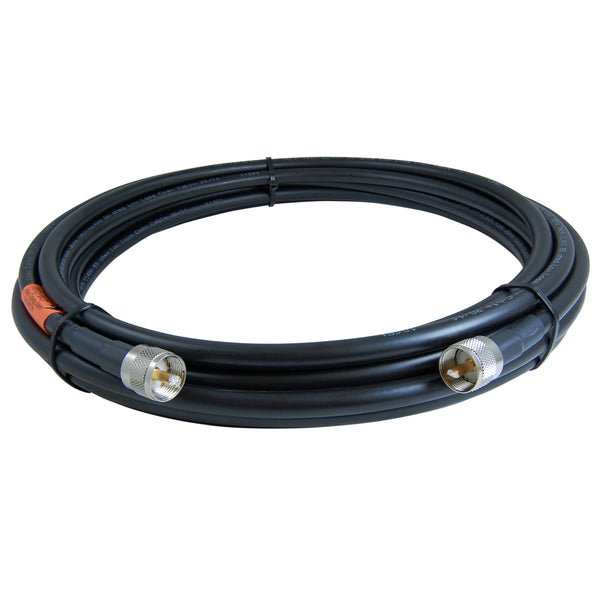

JEFA Tech RG-8X / LL240FLEX Cable Assembly - for Ham and CB

JEFA Tech RG-8X / LL240FLEX Cable Assembly - for Ham and CB

SKU / Part Number:

SKU:CA-240F-UHF-BNC-1

Regular price $22.43
Sale price $22.43 Regular price $0.00

Most orders ship the same day when ordered by noon EST. Do you have an urgent need? Contact us, we can accommodate you!
GENUINE BRAND NAME COAX CABLE
FACTORY DIRECT - WE ARE THE MANUFACTURER
PRODUCED TO STRICT QUALITY CONTROL STANDARDS
SATISFACTION GUARANTEE AND WARRANTY

BUY FACTORY DIRECT FROM JEFA TECH FOR GUARANTEED QUALITY



JEFA Tech Low Loss 240 FLEX / RG-8X is a small, light and flexible low loss coax cable which is ideal for HAM Radio HF and VHF portable operation when high performance as well as small cable size and flexibility is important.  It can also be used as a strain relief jumper inside your shack between your radio/amp and stiff feedline.

Beware of cheaper "RG-8X" coax sold by other sellers. Not all RG-8X is made the same.  JEFA Tech RG-8X, also known as Low Loss 240 FLEX, features a high density stranded copper center conductor, double shielding, and heavy duty UV protected jacket.

Attenuation per 100ft of JEFA Tech RG-8X cable for popular Ham Bands (lower is better):
70cm - 6.34dB | 2M - 3.62dB | 6M - 2.07dB | 20M - 1.1dB | 40M - 0.8dB

Our coax cable assemblies are produced to strict tolerances in our professional assembly facility in the state of Maryland, USA!

JEFA Tech has been in business since 2003. We are well established and here to stay and support you with a quality product.

We stand behind the quality and performance of the cable and offer a 30 day money back guarantee and five year warranty.

QUALITY AND PERFORMANCE: We stand behind the quality and performance of our cables. Our cables are guaranteed to be of the highest quality and performance or your money back.

PRODUCTION DETAILS:
This cable is professionally assembled and tested in our manufacturing facility in Maryland, USA! You are purchasing a completed cable assembly with connectors professionally attached to the cable. The ends are soldered and crimped, heat shrink is applied to seal the cable to the connector and provide additional support and the cable is then tested to ensure proper assembly and performance.

We use an Agilent N9912A RF Analyzer for cable sweep testing.

TECHNICAL SUMMARY for JEFA Tech RG-8X / LL240FLEX:
  • 50 ohm impedance
  • 0.242" outer diameter
  • Lightweight, Flexible
  • FPE Jacket - provides full waterproofing and UV Protection
  • Stranded Copper Center Conductor
  • Foam Polyethylene Dielectric
  • 100% coverage bonded aluminum foil (shield 1)
  • 95% coverage tinned copper braid (shield 2)
  • Direct Burial Rated
  • 5 year warranty, 20+ year life expectancy

CLICK HERE TO DOWNLOAD THE FULL SPECIFICATION SHEET FOR JEFA TECH RG-8X

We have many other connectors and cable types available. We also do custom lengths with same day service. Click here for all of our cabling and connector options.

Need different connectors or lengths? We do custom orders at a reasonable price. Call us at 888-467-2258!


We're here to help!

  • Prefer to order by phone or have questions? Call us at 888-467-2258
  • Large order requirement or ongoing needs? Bulk discounts and credit terms are available.
  • Not enough of this item showing in stock? We have short lead times on most products!
  • Not exactly what you need? We specialize in custom work! Please ask!
