7/16 DIN Male Straight Connector, Compatible with LMR®-400, LL400, RG-8, RG-8/U, RG-213/U
JEFA Tech SKU:
SKU:C400DIN
Regular price
$39.33
Sale price
$39.33
Regular price
$0.00
Unit price
per
Available to order now with short lead time to ship
Need more? Additional quantity is available on demand, estimated 10 day lead time to ship after order is placed.
Most orders ship the same day when ordered by noon EST. Do you have an urgent need? Contact us, we can accommodate you! Call 888-467-2258
This connector only works with a solid center conductor cable (LMR®-400, LL400). Does not work with a stranded center conductor cable (RG-213/U, LMR®-400UF, LL400-FLEX)

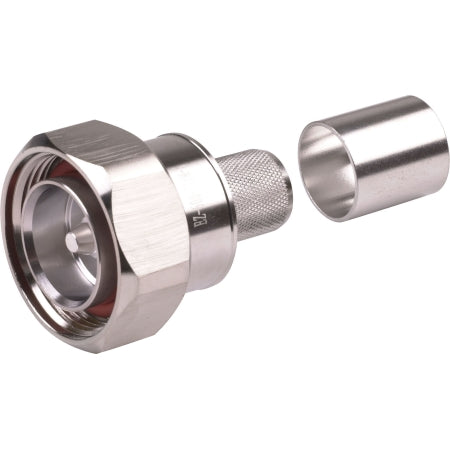

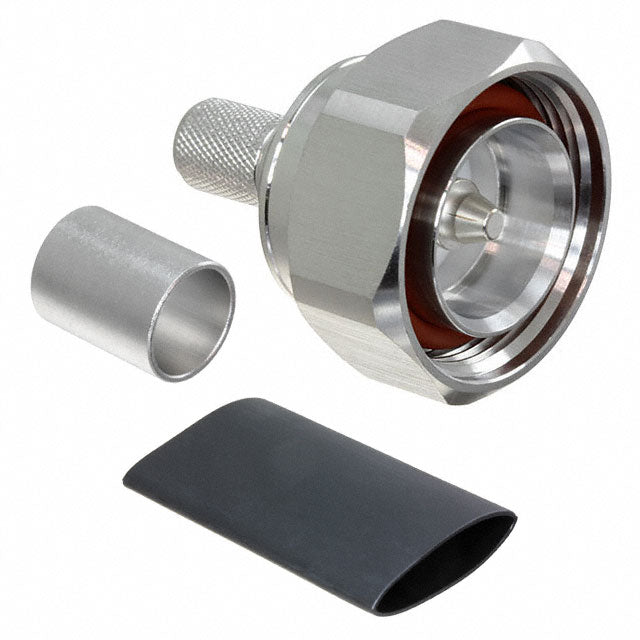

This is a 50 Ohm 7/16 DIN Male Straight Connector, Compatible with LMR®-400, LL400, RG-8, RG-8/U, RG-213/U cable. It has a Copper/Tin/Zinc Plated Brass center pin which is attached to the center conductor by Spring Finger. It has a Copper/Tin/Zinc Plated Brass body which is attached to the cable by Crimp Ferrule. This connector is made by Amphenol Times Microwave Systems and is manufacturer part number EZ-400-716M-X.
Specifications:
Brand / Manufacturer: Amphenol Times Microwave Systems
Manufacturer Part Number: EZ-400-716M-X
Connector Series: 7/16 DIN
Connector Gender: Male
Compatible Cable Types: LMR®-400, LL400, RG-8, RG-8/U, RG-213/U
Impedance: 50 Ohm
Body Style: Straight
Body Material: Copper/Tin/Zinc Plated Brass
Center Pin Material: Copper/Tin/Zinc Plated Brass
Body Attachment: Crimp Ferrule
Center Pin Attachment: Spring Finger
Strip Tool: PA1256
Crimp Tool: HT-336D2
LMR® is a registered trademark of Times Microwave Systems.
