IoT 5-Band In-Line Signal Booster
IoT 5-Band In-Line Signal Booster
SKU:460119
Temporarily out of stock, ships within one week
The IoT 5-Band In-Line Signal Booster is an in-line amplifier that provides a stronger, more reliable cellular data signal to a directly connected device.
Use the IoT 5-Band In-Line Signal Booster when you are not getting a strong enough signal to your connected device due to a very long cable or the lack of a nearby cellular tower.

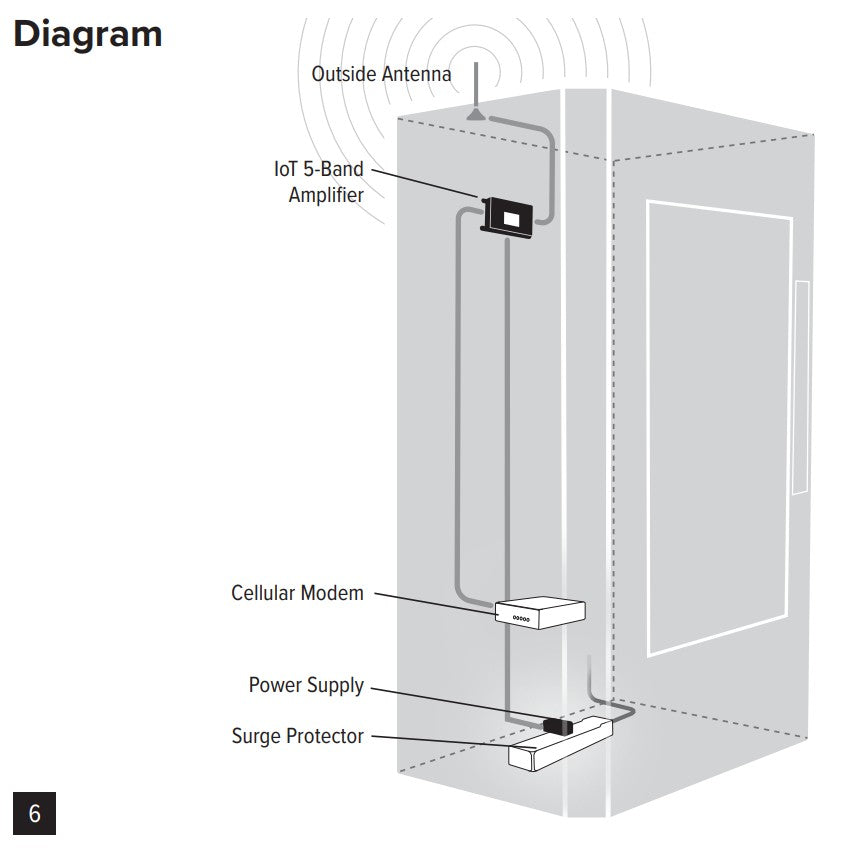

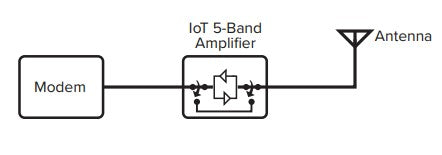

The IoT 5-Band In-Line Signal Booster is installed in-line between the antenna port on your device and the cable leading the outside antenna. This is a directly connected booster meaning it must be connected to the device to be boosted via a cable. It is not a wireless booster or repeater.

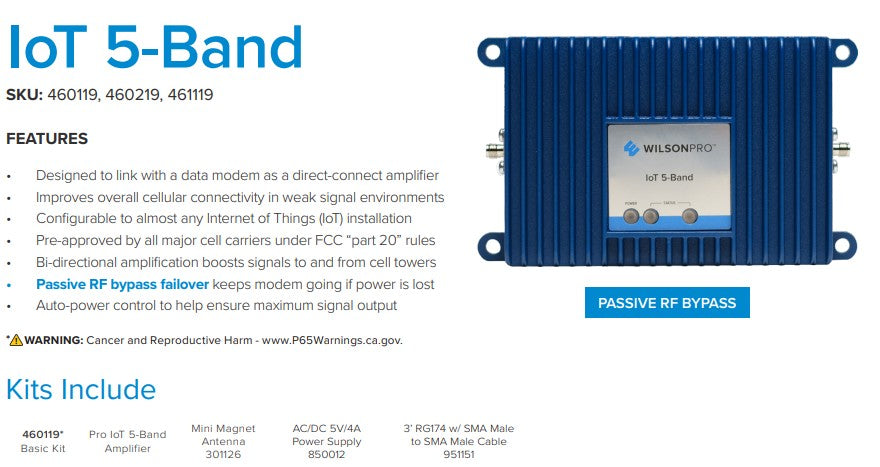

Features
- Installs in minutes
- Boosts all 4G LTE and 5G low band signals from all cell carriers
- Works with all U.S. & Canadian cell carriers
- Friendly, U.S.-based customer support
- FCC & Industry Canada Certified

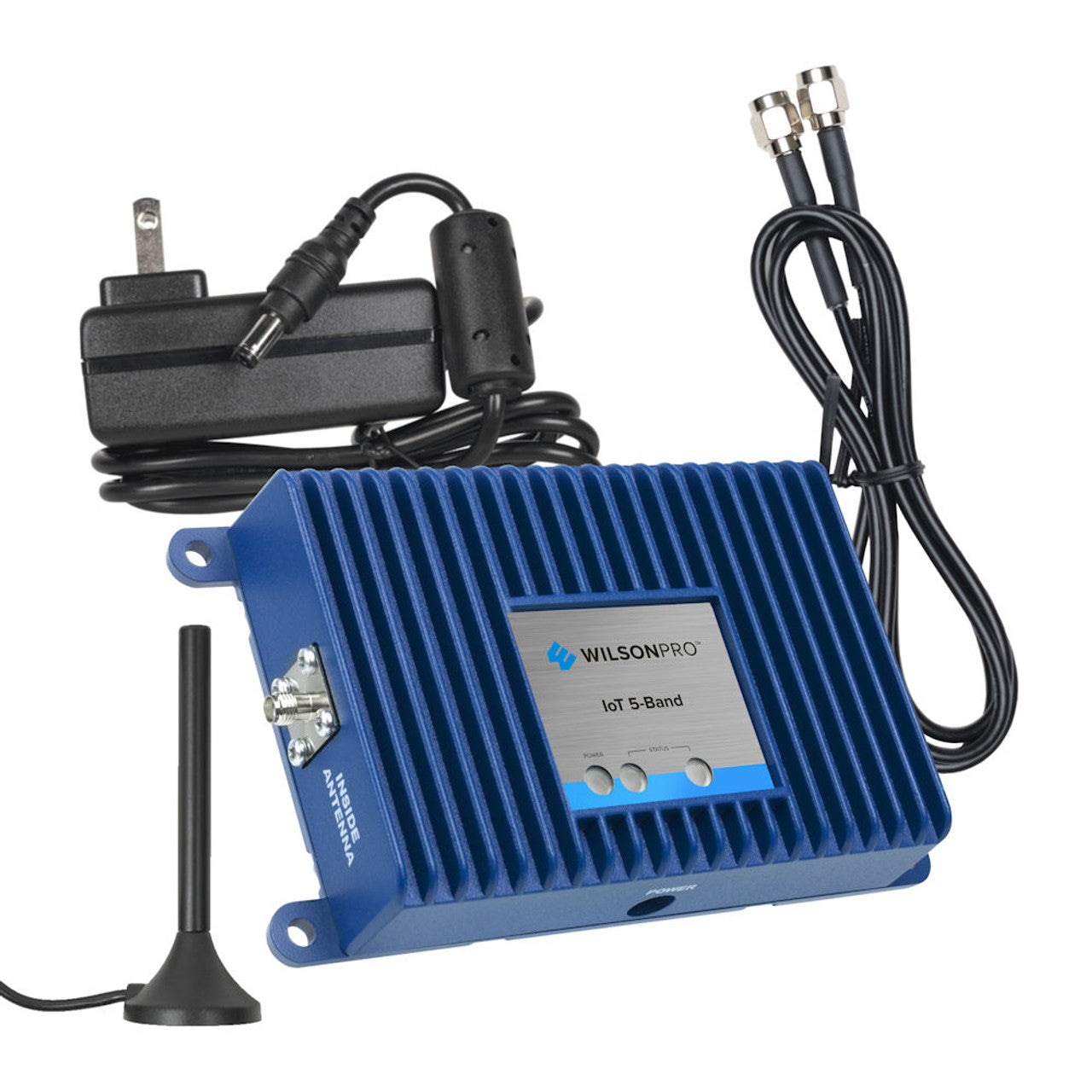

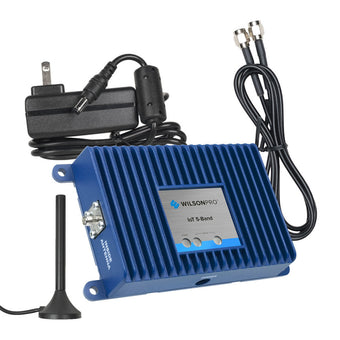

- IoT 5-Band In-Line Signal Booster
- Magnet mount antenna with 12ft of cable (this is included for FCC compliance as the booster can not be sold without an antenna. You may use the cable and antenna of your choice)
- 3FT RG174 SMA Male to SMA Male cable for connection to the device to be boosted
- AC power supply

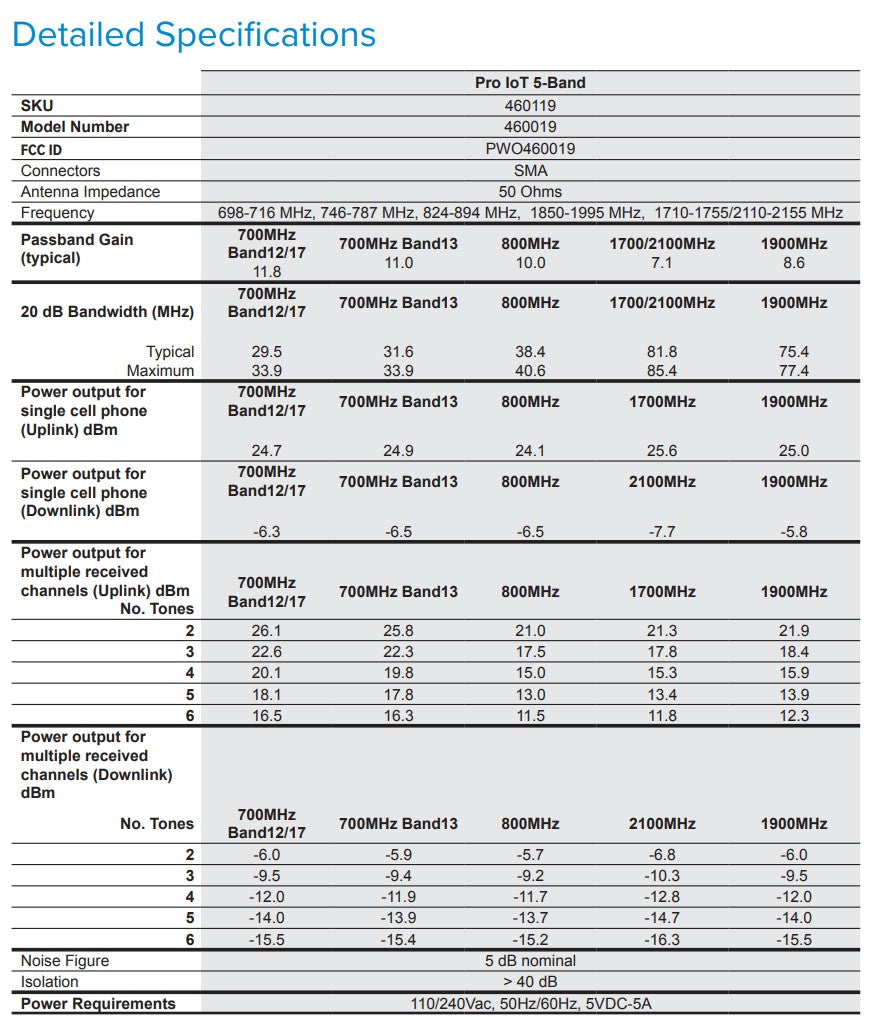

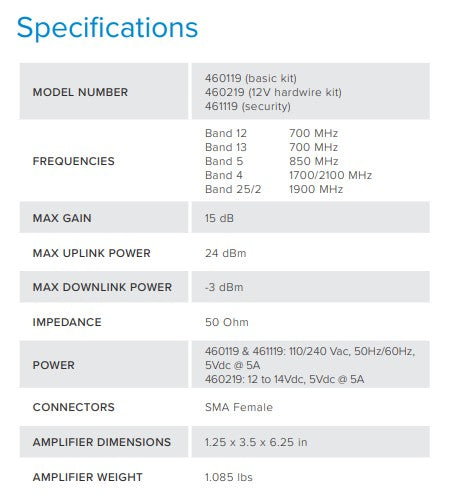

Specs
Model Number 460119
Frequency
Band 12/17 700 MHz
Band 13 700 MHz
Band 5 850 MHz
Band 4 1700/2100 MHz
Band 25/2 1900 MHz
Max Gain 15 dB
Max Uplink Power 24 dBm
Max Downlink -3 dBm
Connector to device: SMA Female
Connector to antenna: SMA Female
Dimensions 6.2 x 3.6 x 1.3 inch / 15.7 x 9.1 x 3.3 cm
Weight 1.2 lbs / 0.54 kg
