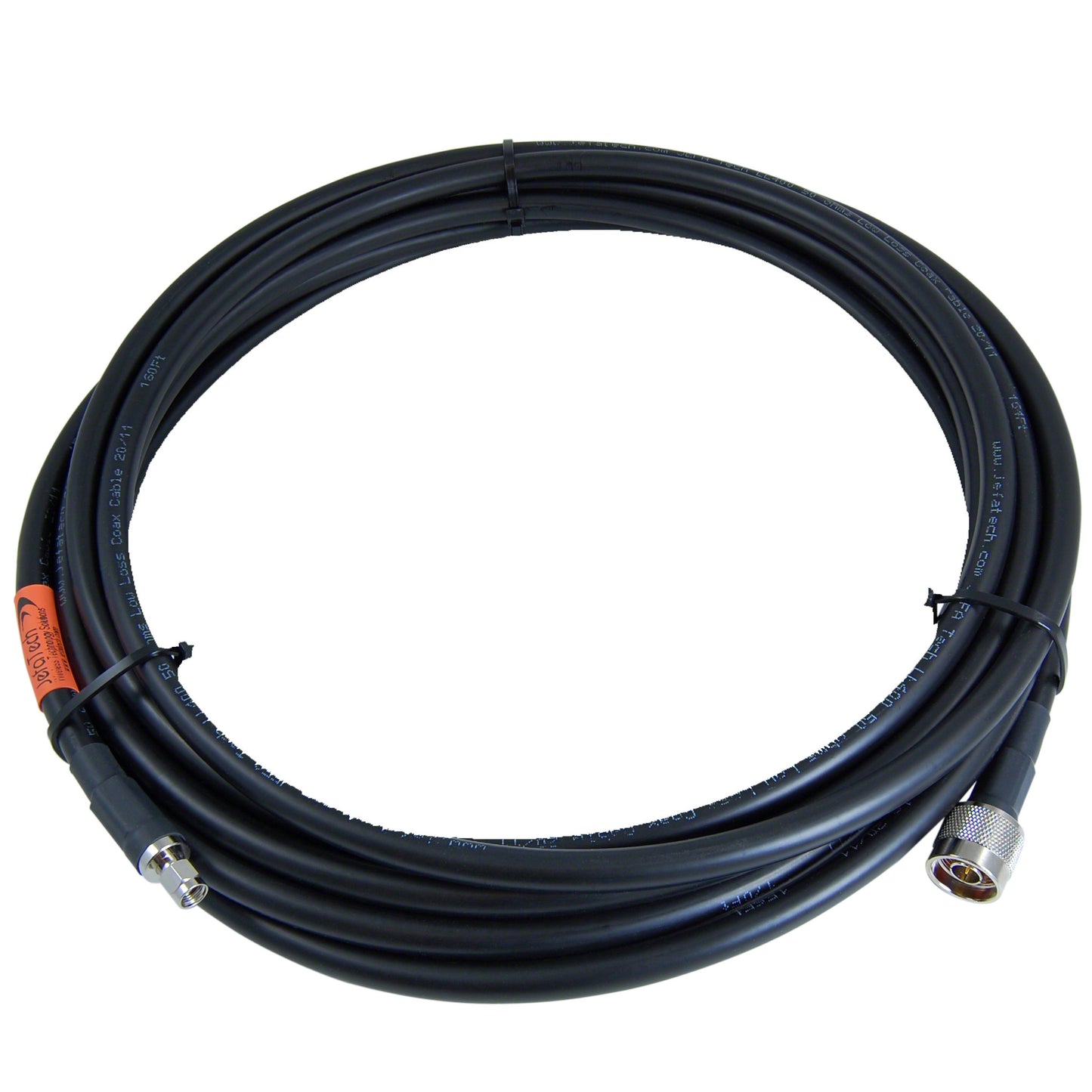

CradlePoint to External Antenna Cable Assembly - SMA Male to N Male

SKU: CA-400F-NM-SMA-L
  • $0.00



Prefer to order by phone or have questions? Call us at 888-467-2258

JEFA Tech Low Loss 400 FLEX Cable assemblies have been tested and certified by CradlePoint for use with all AER, COR IBR, IBR, ARC, CBA, and MBR models.

This cable directly connects any AER, COR IBR, IBR, ARC and CBA model CradlePoint to any of the following CradlePoint recommended antennas:
Omnidirectional Antenna Part # 170668-000
Directional Patch Part # 170587-000
Directional Yagi Part # 170588-000
MIMO Wall Mount # CP-2014-1-PAN (2 cables required)

No adapters are required.  This cable includes the correct connectors pre-attached to the cables to connect your antenna directly to the Cradlepoint.

Cable signal loss / attenuation
Not all cable is made the same!  Our cable is industry leading with the lowest signal loss available. Signal loss is approximately 5db per 100ft of cable (1.6dB per 10m).  Lower numbers are better.  To determine your break-even point for cable length divide your antenna gain by 0.05.  Example 5dBi antenna = 5 / 0.05 = 100ft.  This means with a 100ft cable, you are now at zero net gain for your 5dB gain antenna.  In situations where the signal outside is good (3-5 bars), you can typically increase the cable length past the break even without a problem.  If the signal outside is poor (1 bar), it is recommended to keep the cable length as short as possible.  Need help?  Contact a JEFA Tech expert and we'll help you determine the best solution for your situation.

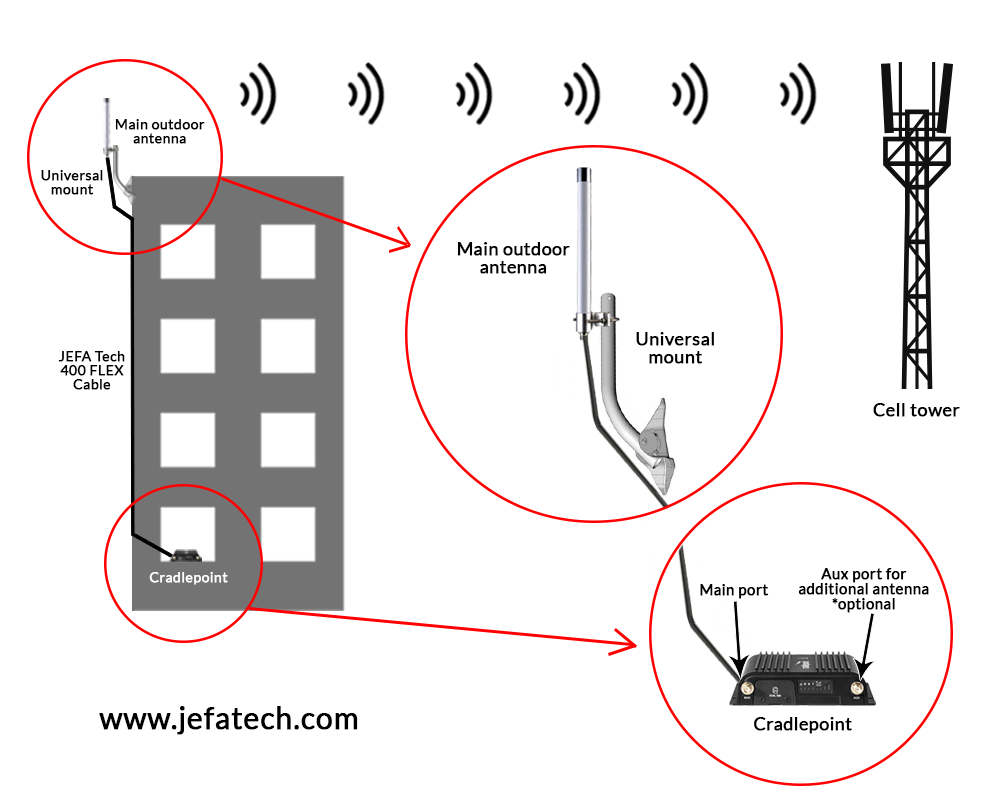

jefatech_cradlepoint_diagram

CradlePoint MBR models with a "USB stick" modem will need a TS9 to SMA adapter in addition to this cable.

QUALITY AND PERFORMANCE: This cable is professionally assembled and tested in our manufacturing facility in Maryland, USA! We stand behind the quality and performance of our cables. Our cables are guaranteed to be of the highest quality and performance or your money back.

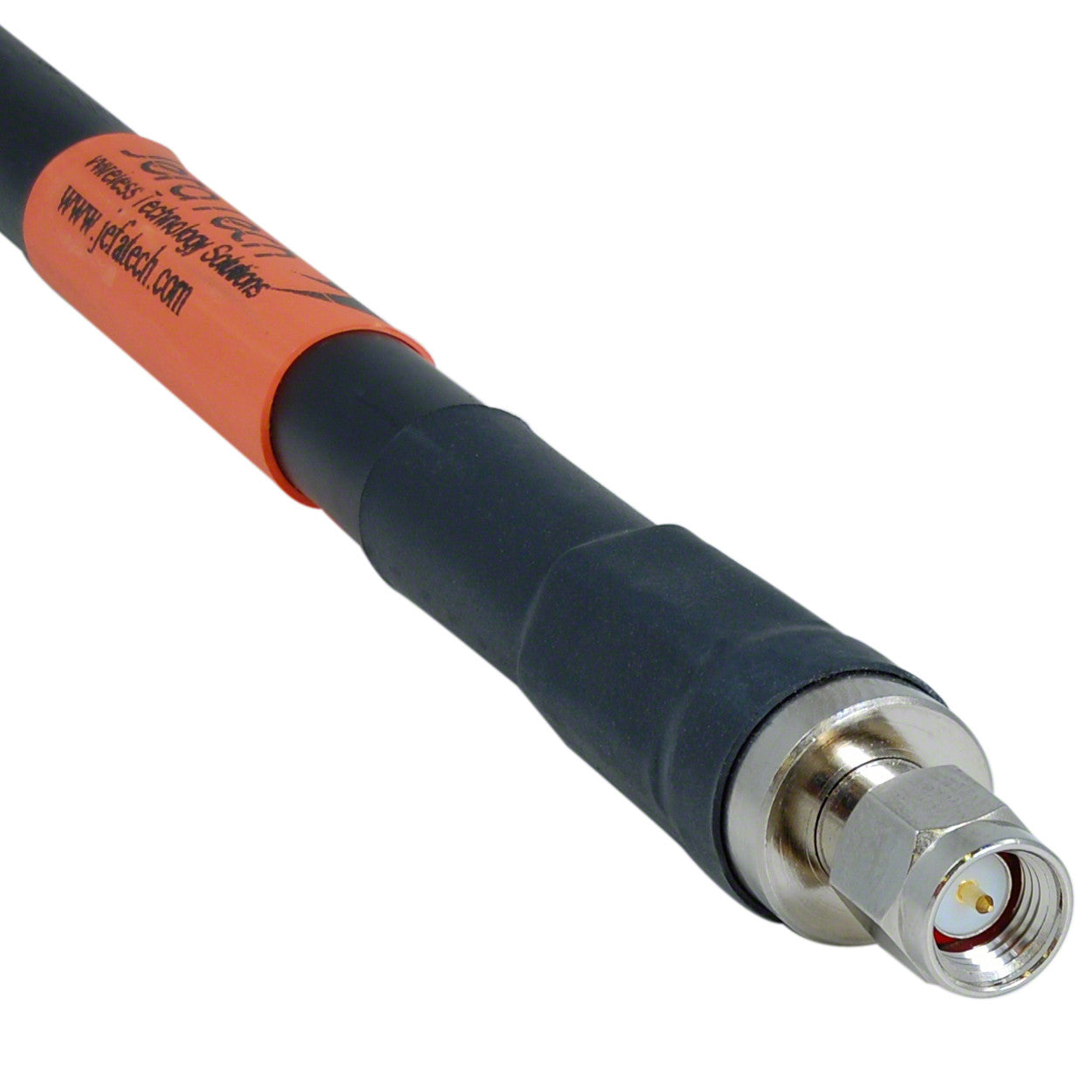

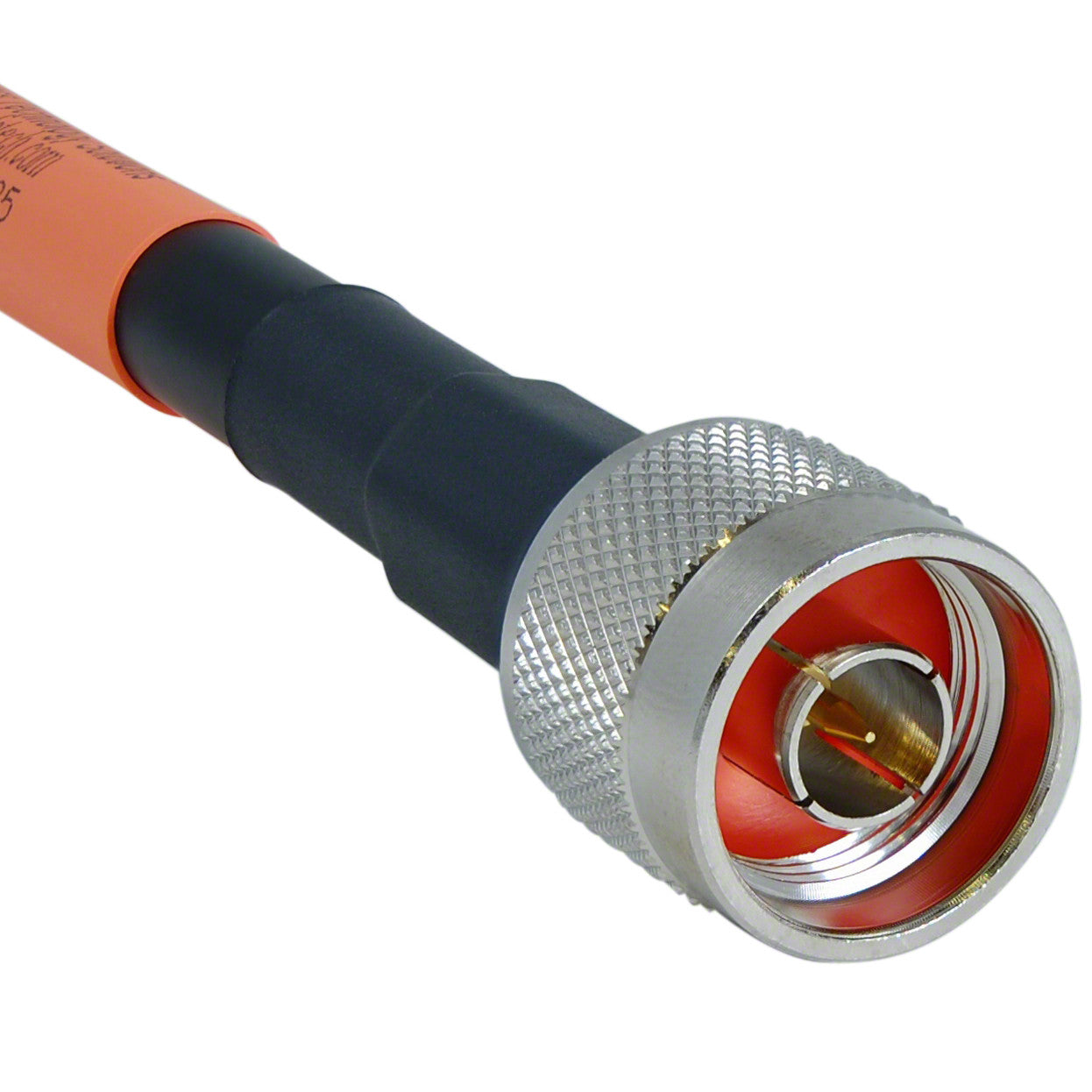

PRODUCTION DETAILS: You are purchasing a completed cable assembly with connectors professionally attached to the cable. The ends are soldered and crimped, heat shrink is applied to seal the cable to the connector and provide additional support and the cable is then tested to ensure proper assembly and performance.

We use an Agilent N9912A RF Analyzer for cable sweep testing.

SAME DAY SHIPPING: These cables are built-to-order. We have an optimized production line for these assemblies so most orders will ship the same day!

RETURN POLICY
ORDER CAREFULLY!  DOUBLE-CHECK YOUR NEEDED LENGTH!  Stock lengths of 20ft and 50ft are returnable if still in unused condition.  Custom lengths are made to order and not returnable if you choose the wrong length for your application!

TECHNICAL SUMMARY:

  • 50 ohm impedance
  • .405" outer diameter (same as RG-8, RG-213, LMR-400, etc)
  • Lightweight, Flexible
  • Thermoplastic Elastomer Jacket - softer, more flexible than polyethelene - full waterproofing and UV Protection
  • Stranded Copper (7 x 0.036") Center Conductor
  • Double Shielded for low loss and interference rejection
  • First Shield: Bonded aluminum foil with 100% coverage
  • Second Shield: Tinned copper braid with 98% coverage
  • Foam Dieletric - adds to flexibility and performance
  • 5 year warranty, 20+ year life expectancy
