RG-213/U Premium RG-213/U - 100% Bare Copper Coax
RG-213/U Premium RG-213/U - 100% Bare Copper Coax
SKU / Part Number:
SKU:RG213-BTF
Regular price
$1.45
Sale price
$1.45
Regular price
$0.00
Unit price
per

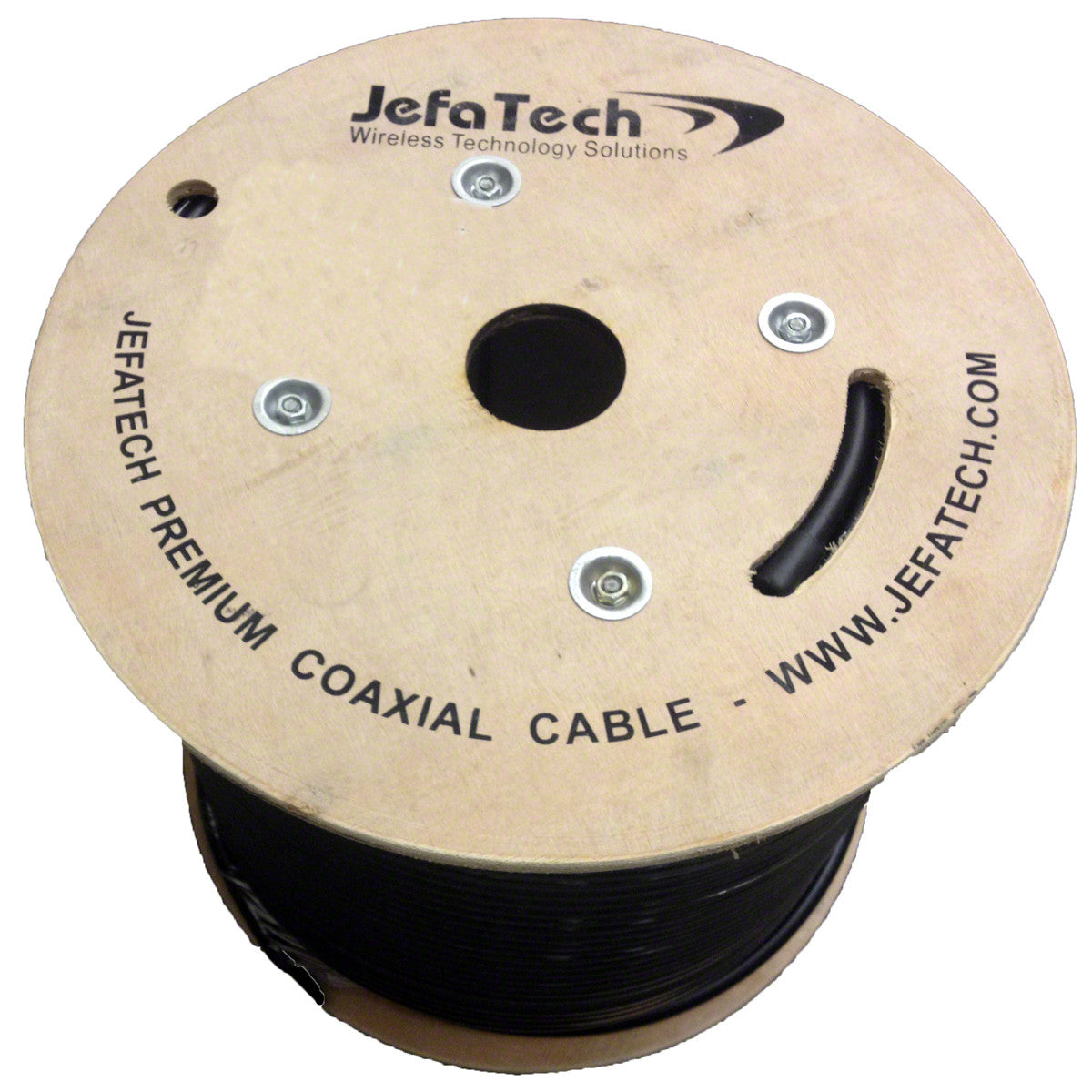

Note: 500 ft reels weigh over 50lbs and incur overweight shipping surcharges. 250ft, 400ft reels and by the foot in lengths under 400ft will have lower shipping charges.
Most orders ship the same day when ordered by noon EST. Do you have an urgent need? Contact us, we can accommodate you! Call 888-467-2258

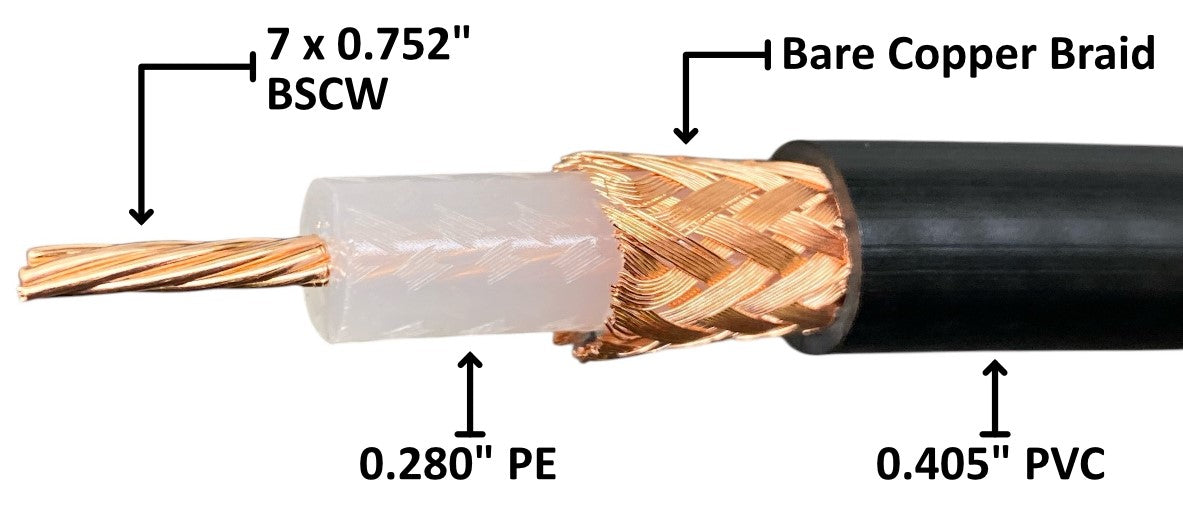

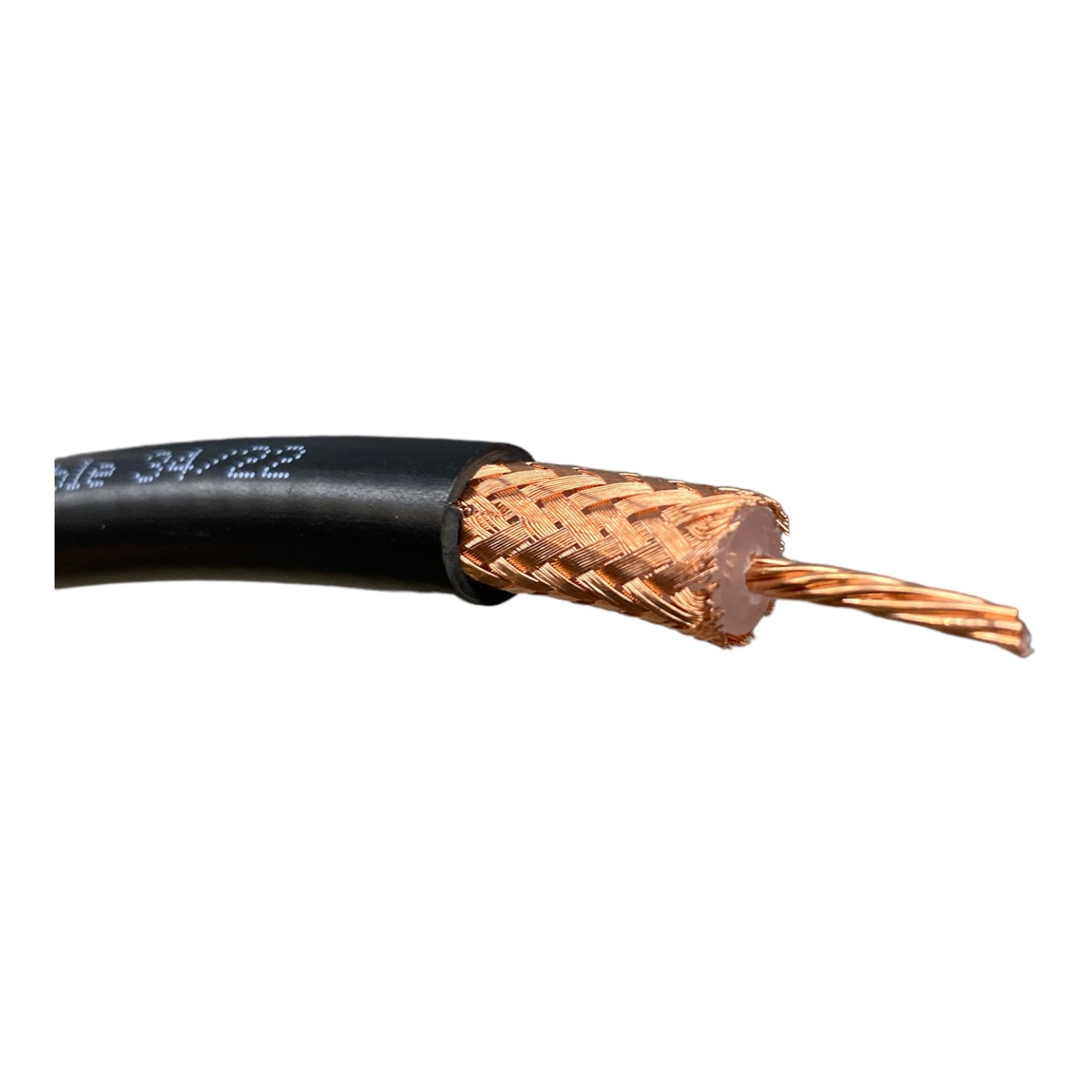

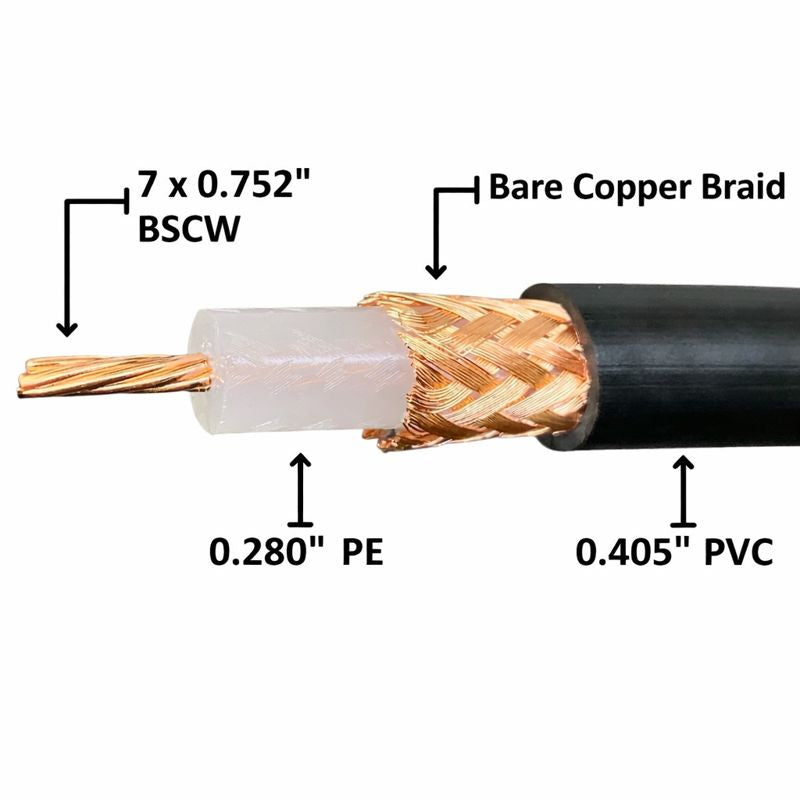

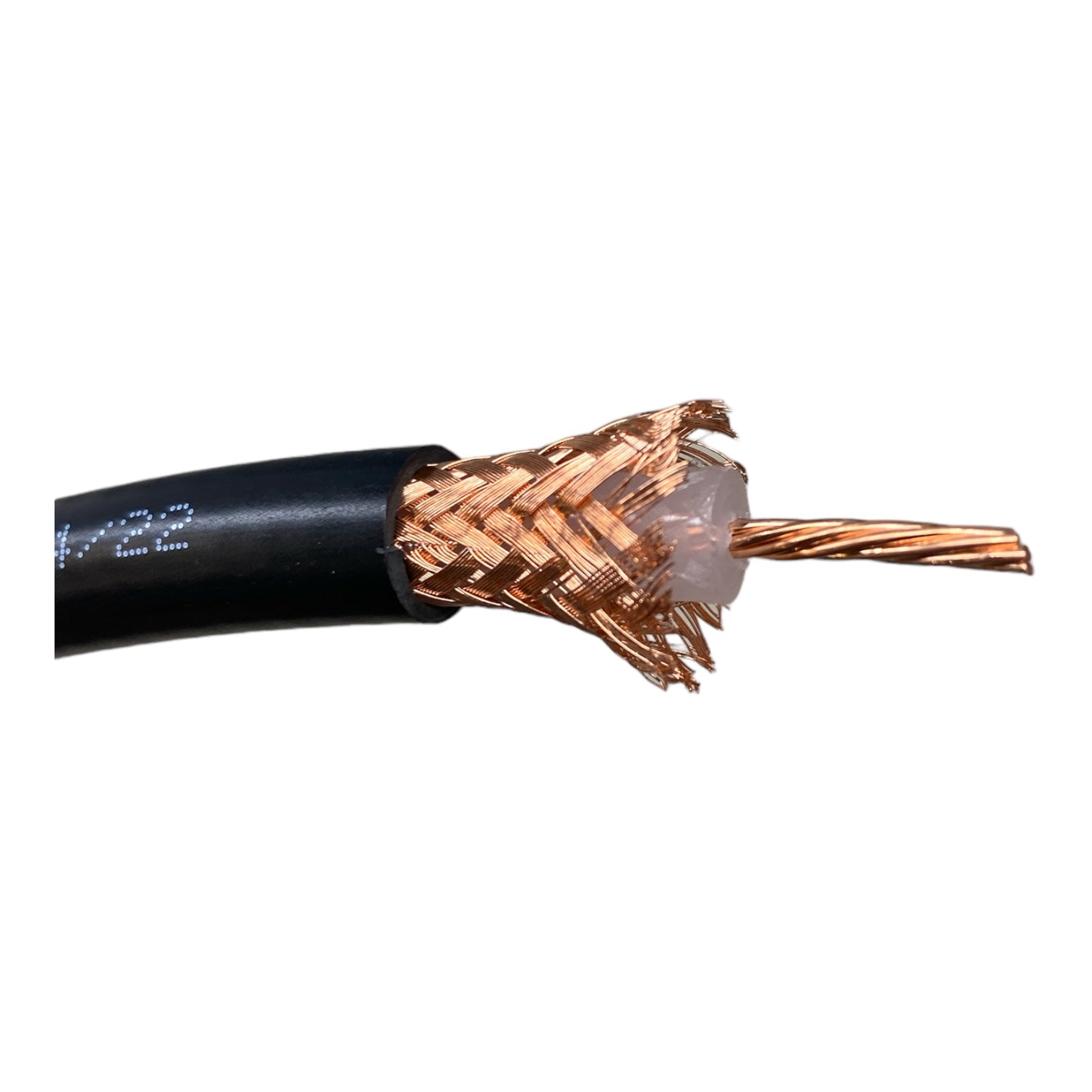

RG-213/U is a very flexible, low loss coax cable which is ideal for HAM Radio HF and CB use. It is suitable for mobile applications, and it can also be used around a rotator. It features 7 x 0.752 inch bare copper strands to form the center conductor, a solid polyethylene dielectric, a 95% bare copper braid, and an overall diameter 0.405 inch PVC jacket.
- Lightweight, Flexible
- PVC Jacket, UV Protection
- Stranded Copper Center Conductor
- Solid Polyethylene Dielectric
- 95% bare copper braid
| Frequency / Band | Attenuation 100/ft | Avg Power (Watts) |
| 3.5 Mhz (80 meters) | 0.361 | 5630 |
| 7 Mhz (40 meters) | 0.514 | 3960 |
| 14 Mhz (20 meters) | 0.732 | 2780 |
| 28 Mhz (10 meters & CB) | 1.045 | 1940 |
| 50 Mhz (6 meters) | 1.413 | 1440 |
| 144 Mhz (VHF) | 2.482 | 820 |
Instead of RG-213/U, you might also consider JEFA Tech Low Loss 240 FLEX - Premium RG-8X
Compared to RG-213/U, JEFA Tech Premium RG-8X features:
- Smaller diameter
- More Flexible
- Lower Cost
- Lighter Weight = Lower Shipping Cost
