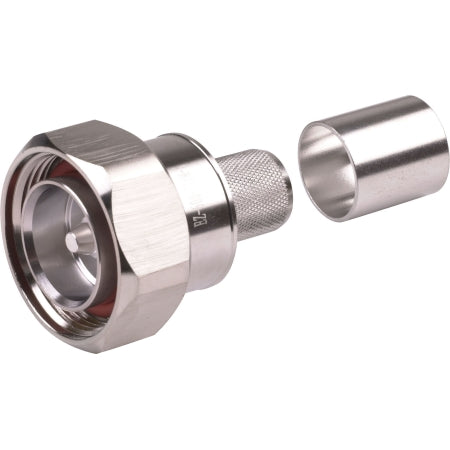

Connector: 7/16 DIN Male Captivated Pin for LL400
SKU: C400DINNote - captivated pin only works with a solid center conductor cable (LL400). Does not work with a stranded center conductor cable (RG-213/U, LL400-FLEX)
Specifications:
Connector Series: | 7/16 DIN |
Connector Gender: | Male |
Cable Types: |
LL400, LMR-400 |
Polarity: | Standard |
Impedance (Ohm): | 50 Ohm |
Body Style: | Straight |
Body Material: | Nickel Plated Brass |
Center Pin Material: | Nickel Plated Brass |
Body/Ferrule Attachment: | Crimp |
Center Pin Attachment: | Non solder captivated |
Recommended Tools:
Strip Tool - PA1256 or CST-400
Crimp Tool - HT-336D2
